Heavy Duty Indoor Electrical Control Cabinet with Mounting Plate
Julian Zheng,[email protected]
2026-04-19
On This Page
Project Overview

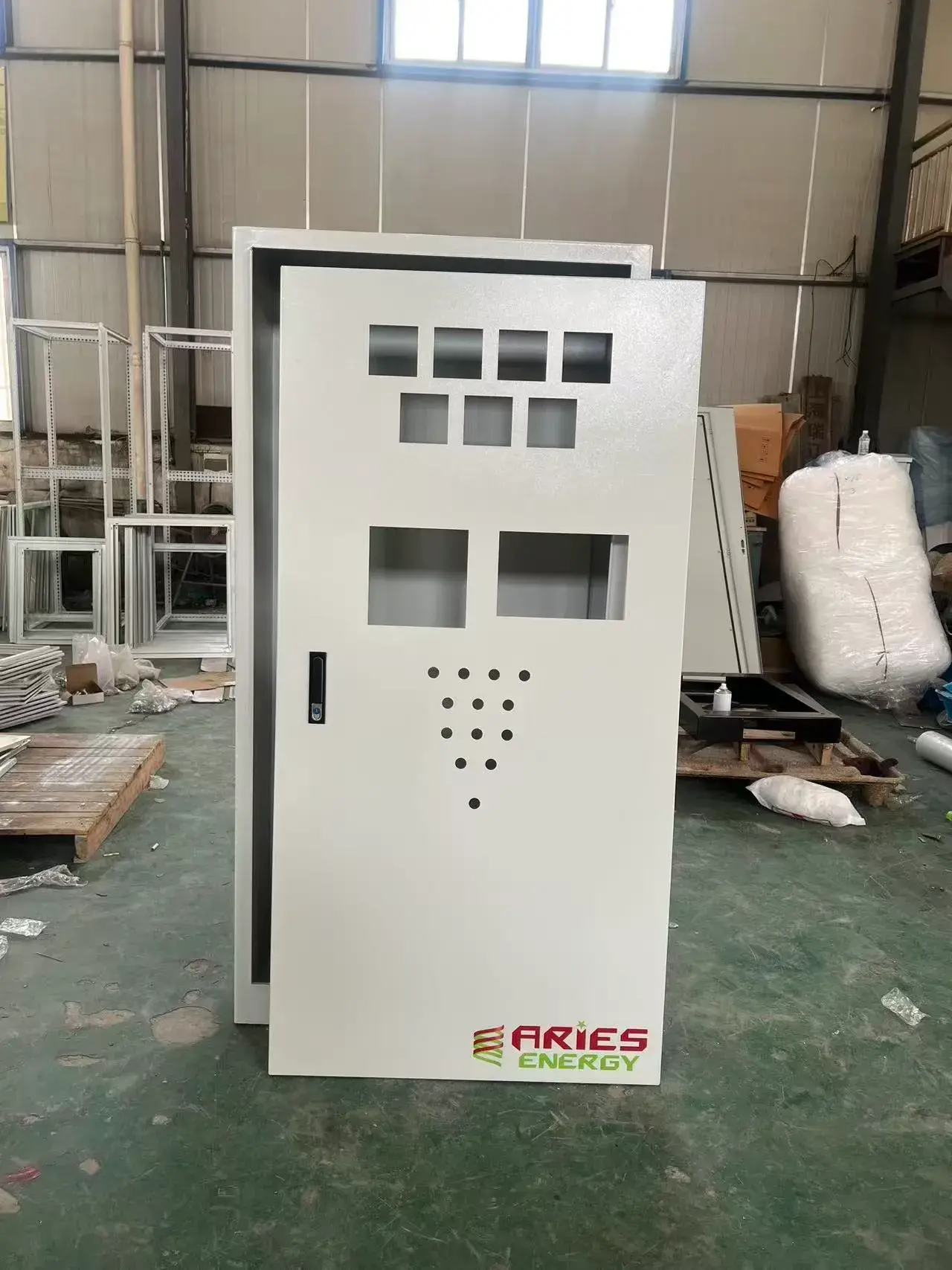

This project features a heavy-duty indoor electrical control cabinet designed for industrial automation and control systems. The enclosure adopts a single front door structure with a full-size mounting plate, providing a clean, organized, and efficient layout for electrical components.

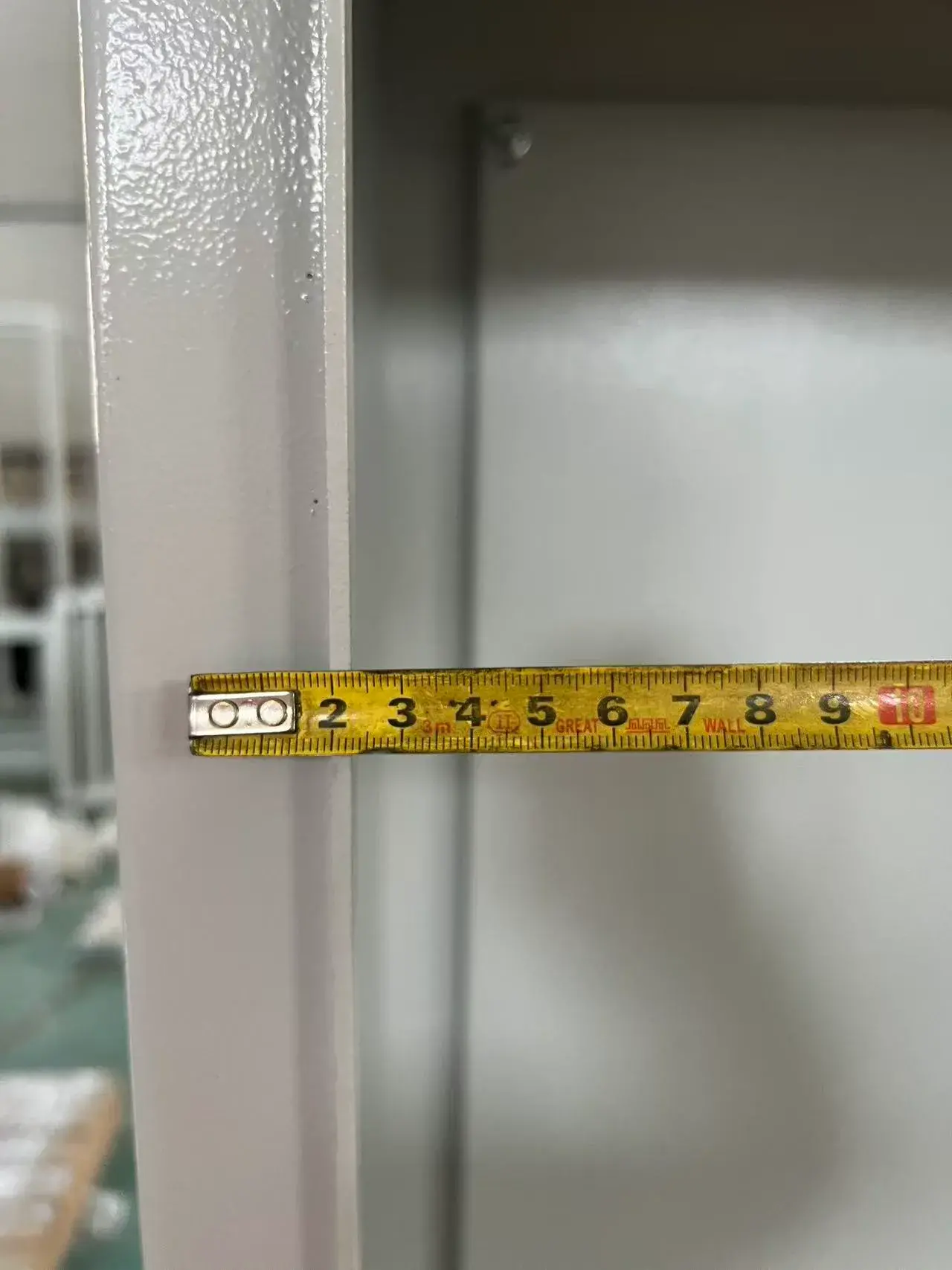

Manufactured from 3 mm CRCA (cold rolled carbon steel), the cabinet delivers superior mechanical strength and long-term durability. Designed for indoor environments, the enclosure achieves IP42 protection, ensuring safe operation against dust and accidental contact.
With support for custom configurations, including pre-cut holes, cable entry solutions, and UV-printed logos, the cabinet offers flexible integration for various industrial applications.
Client Requirements for Custom Electrical Enclosure；
The client required a robust and customizable indoor control cabinet with the following specifications:
• Application: Industrial control and automation system
• Installation: Floor standing (indoor)
• Structure: Single front door design
• Material: CRCA / low carbon steel
• Thickness: 3 mm heavy-duty construction
• Mounting: Full mounting plate required
• Protection: Minimum IP42
• Cable Entry: Bottom entry with removable gland plate
• Customization: Pre-cut holes for components and cable glands
• Branding: Custom logo with UV printing
• Maintenance: Easy access with wide door opening angle
Custom Electrical Enclosure Manufacturing Solution；
Based on the project requirements, a fully customized enclosure solution was developed:
• Heavy-duty 3 mm CRCA steel construction for enhanced rigidity and durability
• Single front door structure for straightforward access and operation
• Full-size mounting plate for flexible component installation
• Bottom cable entry with removable gland plate for easy wiring
• Pre-cut holes for cable glands, switches, and component mounting
• Custom UV printing for logos, labels, and identification marks

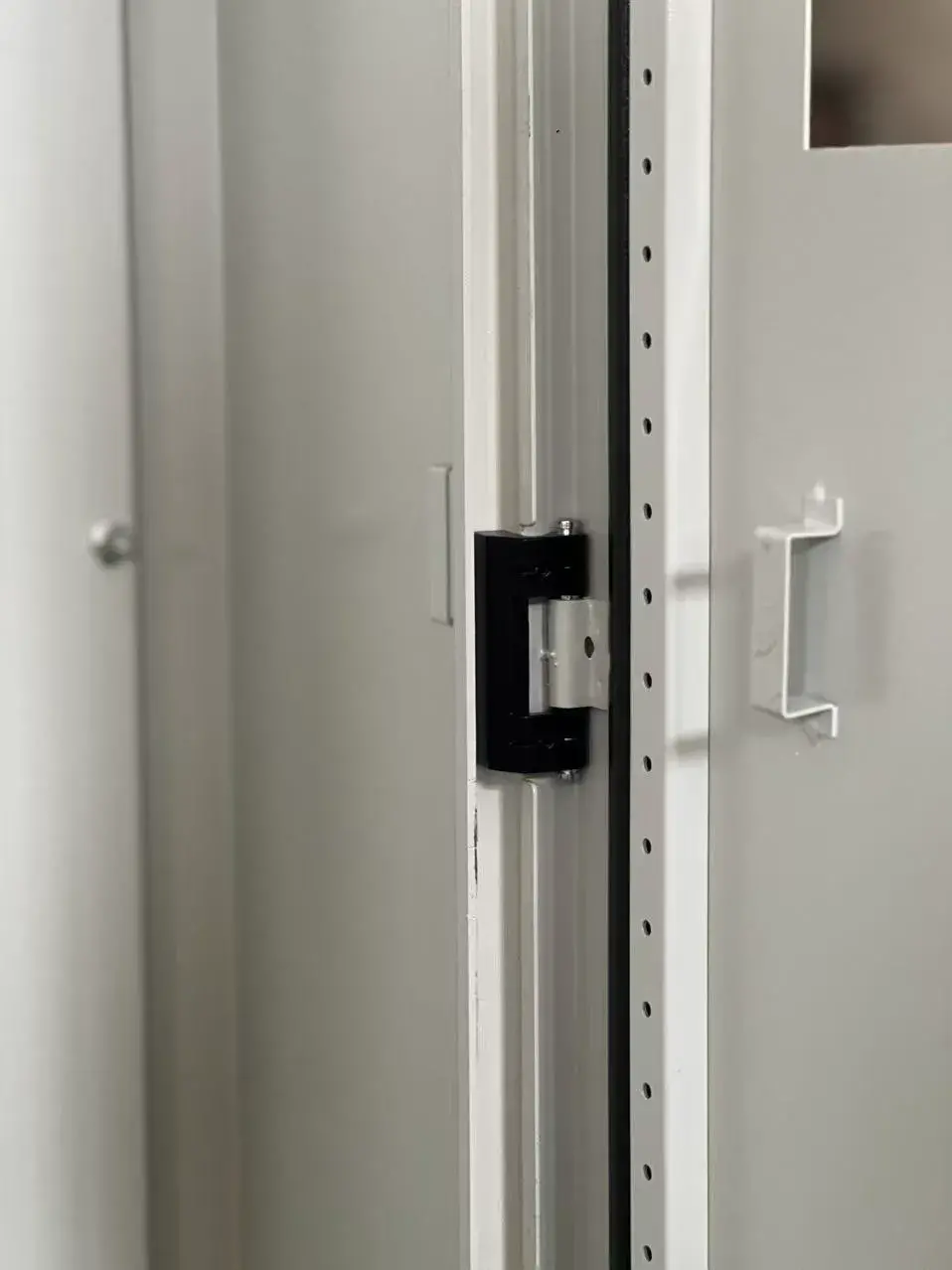

• Heavy-duty concealed hinges allowing wide opening angle for maintenance
• Clean internal layout design for organized wiring and component separation
Electrical Enclosure Specifications & Fabrication Details；
• Type: Indoor Electrical Control Cabinet
• Structure: Single front door
• Material: CRCA / low carbon steel
• Thickness: 3 mm
• Mounting Plate: Included
• Protection Level: IP42
• Cable Entry: Bottom entry
• Gland Plate: Removable
• Custom Options: Pre-cut holes / UV logo printing / layout customization
• Installation: Floor standing
• Application: Industrial control systems
Manufacturing Process；
• Laser cutting of stainless steel sheets
• CNC bending and precision forming
• Welding and structural assembly
• Surface finishing (brushed or customized)
• Installation of internal components and accessories
• Quality inspection and sealing verification

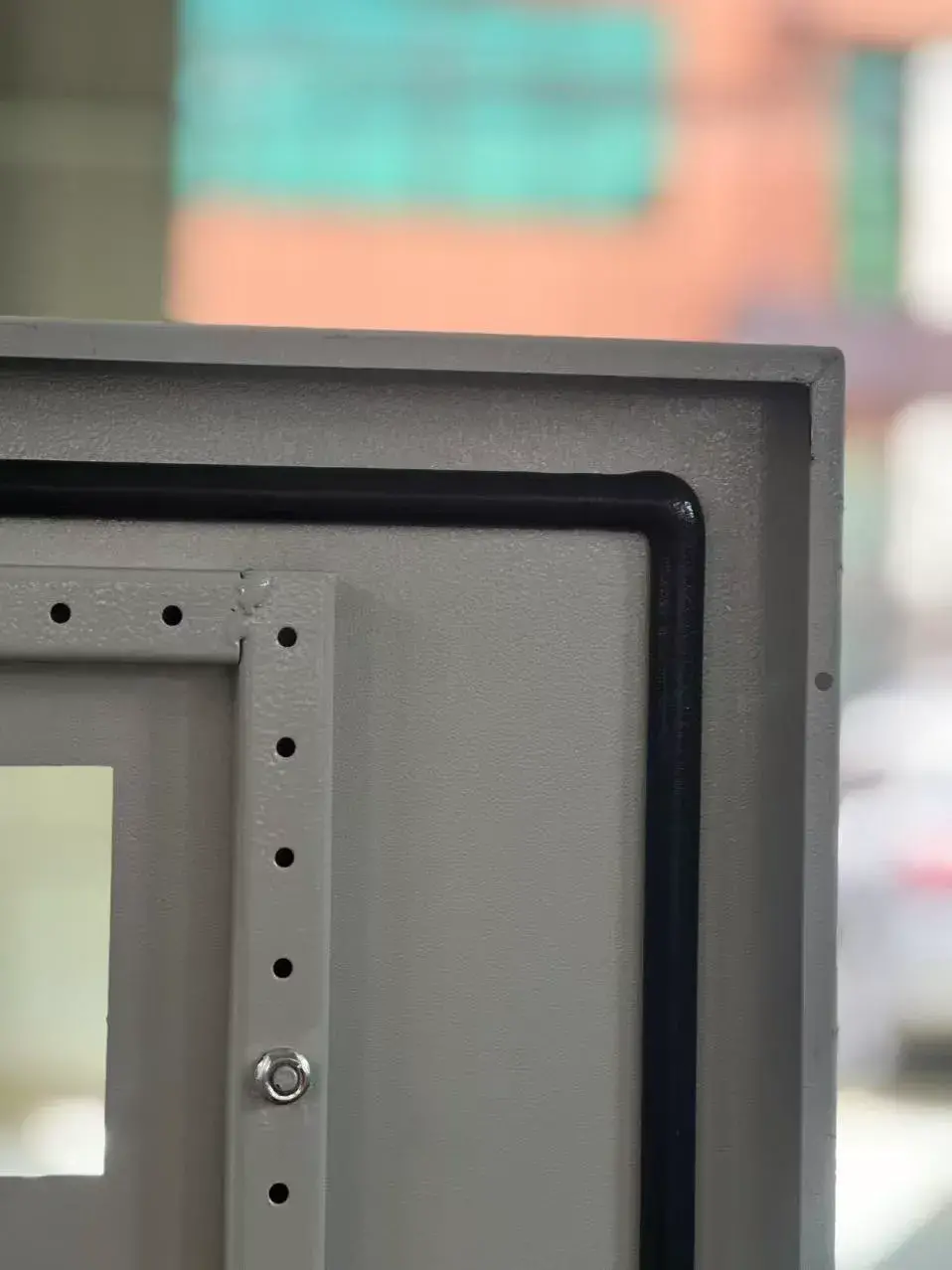

• PU foamed-in-place gasket
• UV digital printing for logo & marking
Final Result；
The final cabinet delivers a reliable and heavy-duty solution for indoor industrial control applications.
With strong structural design, flexible customization options, and clean internal layout, the enclosure ensures efficient installation, easy maintenance, and long-term operational stability.
Why Choose Vililong as Your Electrical Enclosure Manufacturer?；
Why Choose Vililong as Your Electrical Enclosure Manufacturer?
– 10+ years sheet metal fabrication experience
– OEM & custom design support
– Fast production (7–10 days)
– Export to 30+ countries
– Strict quality inspection
We help customers reduce cost while ensuring industrial-grade performance.
