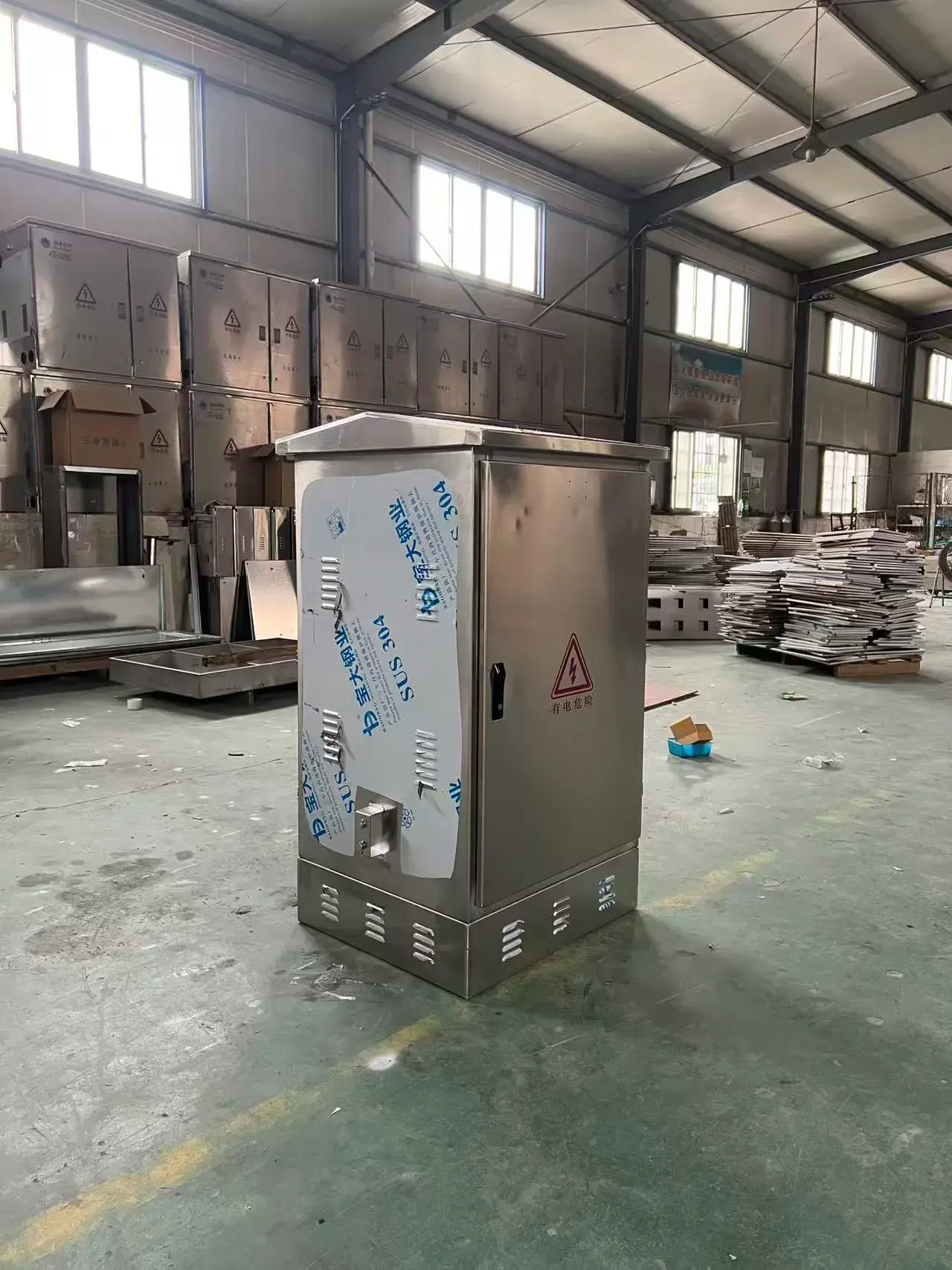

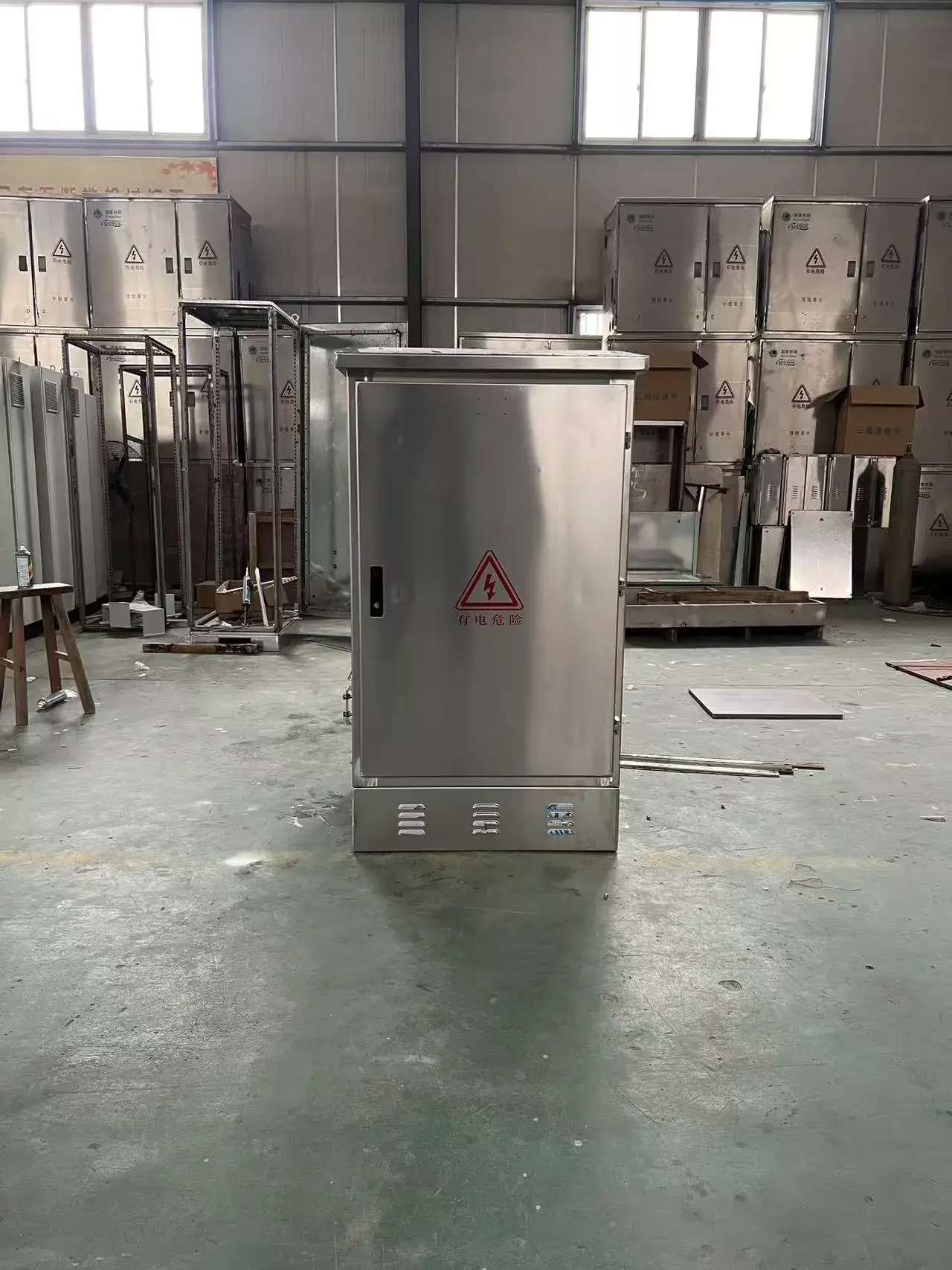

SUS304 Outdoor Enclosure for State Grid of China

This project involves a custom-designed outdoor electrical enclosure manufactured from SUS304 stainless steel, developed for power distribution and control applications in demanding environments.

The enclosure is engineered to provide excellent corrosion resistance, reliable sealing performance, and long-term operational stability. Special attention is given to waterproof design, cable entry protection, and internal electrical safety to ensure consistent performance in high-humidity and outdoor conditions.

The customer required a high-performance stainless steel enclosure with strict technical and environmental specifications:

• Material: SUS304 stainless steel, enclosure thickness 2.0–2.05 mm
• Internal panel: ≥2.0 mm stainless steel mounting plate
• Structure: Fully sealed bottom design with reserved cable entry openings
• Electrical system: Integrated three-phase four-wire (A, B, C, N) busbar system
• Terminals: High-current terminals located at lower rear side for easy cable connection
• Climate control: Equipped with temperature and humidity controller and heating device
• Power supply: Internal auxiliary power source for installed devices
• Insulation: Internal insulation board ≥8 mm thickness

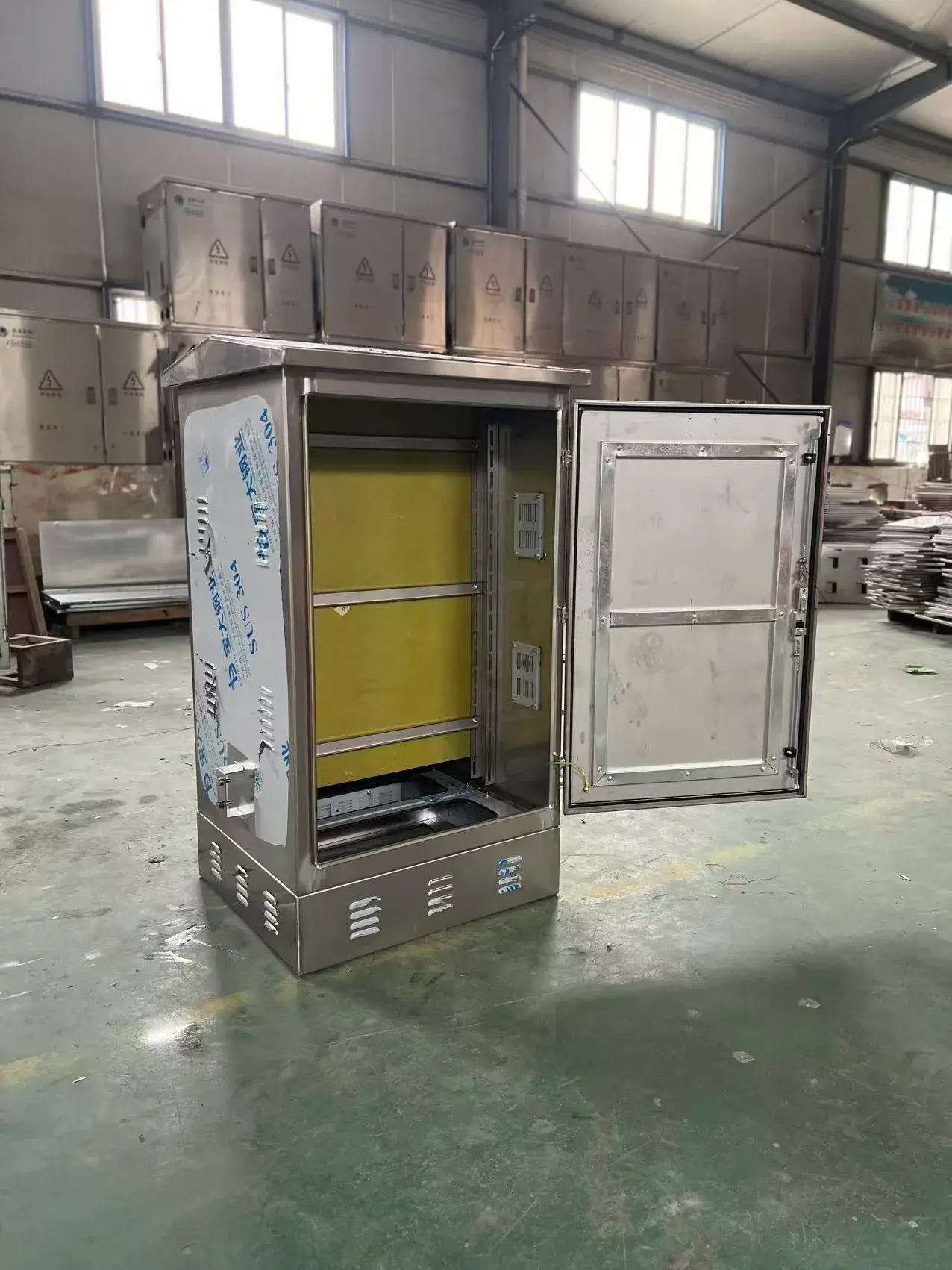

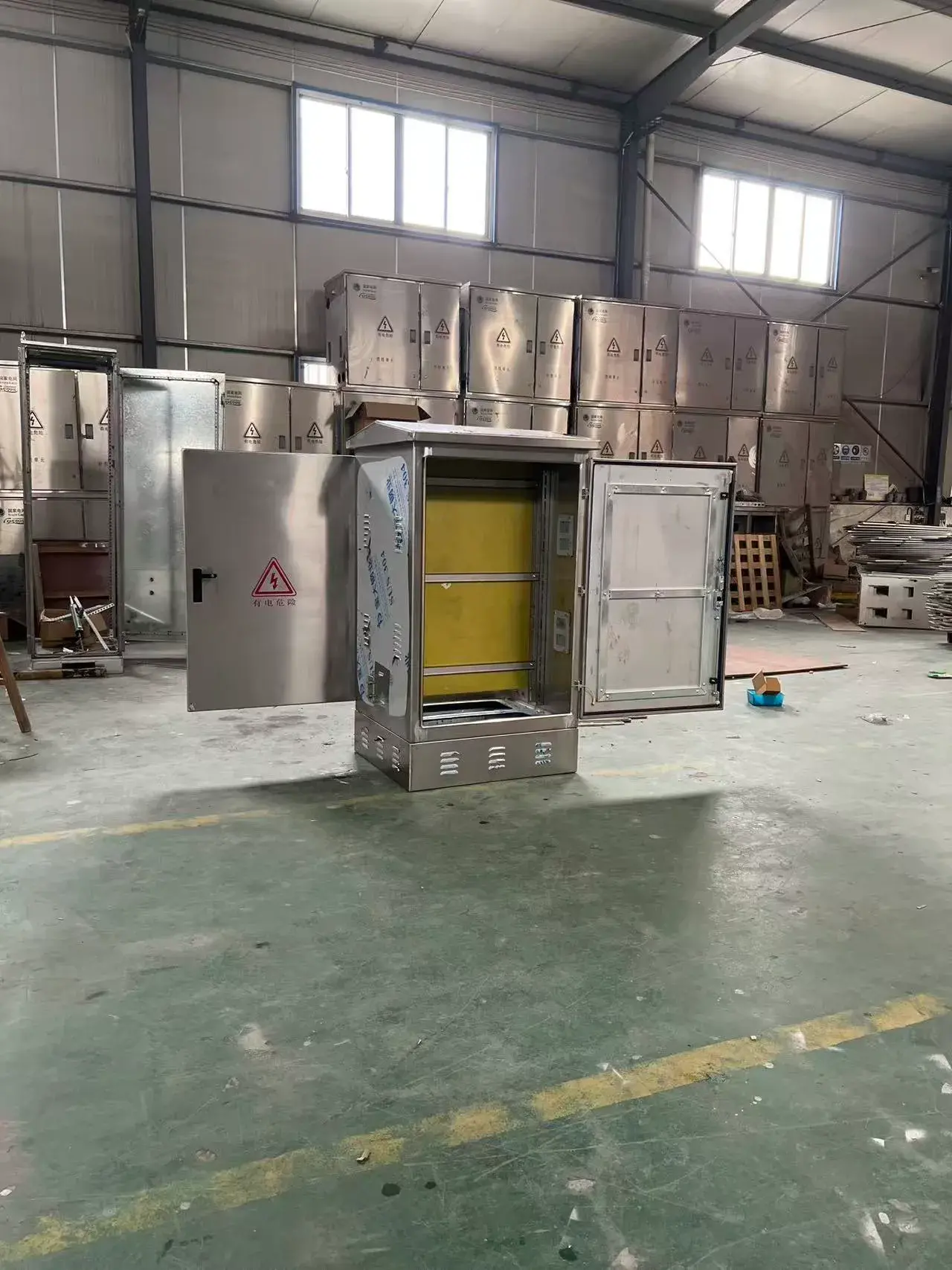

• Door: Double-door design with sealing gasket and grounding wires
• Nameplate: Pre-punched holes on both front and rear doors
• Ventilation: Vent openings with filter cotton

Based on the project specifications, a fully customized enclosure solution was developed to meet both environmental and electrical requirements:

• Fully welded stainless steel structure for strength and corrosion resistance
• Outward-bent door edge design to prevent rainwater ingress
• Continuous PU sealing gasket to ensure reliable waterproof performance
• Bottom cable entry design with complete sealing to maintain enclosure integrity
• Side cable entry configured with drip loop (“anti-drip bend”) to prevent water intrusion
• Optional rainproof canopy to protect top-mounted components if required
• Optimized internal layout for busbar system and high-current connections
• Integrated insulation and moisture protection to ensure electrical safety

• Material: SUS304 stainless steel (optional SUS316)
• Thickness: 2.0–2.05 mm enclosure / ≥2.0 mm mounting plate
• Structure: Fully welded enclosure body
• Protection: Designed for high moisture resistance and outdoor applications
• Sealing: PU gasket with full perimeter sealing
• Cable Entry: Bottom entry preferred, sealed openings
• Ventilation: Filtered ventilation openings
• Insulation: ≥8 mm insulation board
• Busbar System: Three-phase four-wire (A, B, C, N)
• Grounding: Door grounding wires installed
• Surface Finish: Brushed stainless steel or customized finish

• Laser cutting of stainless steel sheets
• CNC bending and precision forming
• Welding and structural assembly
• Surface finishing (brushed or customized)
• Installation of internal components and accessories
• Quality inspection and sealing verification

The completed enclosure meets all technical and environmental requirements specified by the client, delivering excellent waterproof performance, corrosion resistance, and electrical safety.

The design ensures reliable operation in outdoor and high-humidity environments, making it suitable for power distribution systems, infrastructure projects, and industrial applications requiring high protection standards.
