Custom 25mm Pitch Modular Electrical Enclosure for Industrial Control Panel

This project features a custom 25mm pitch modular electrical enclosure designed for industrial control panel applications. The enclosure was manufactured according to the customer’s approved drawing, with a modular frame structure, removable panels, internal mounting plate, sealing design, and heavy-duty hardware for reliable installation and long-term industrial use.

The cabinet was made from cold-rolled steel with a RAL7035 powder-coated finish, providing a clean industrial appearance and reliable protection for indoor electrical control systems.

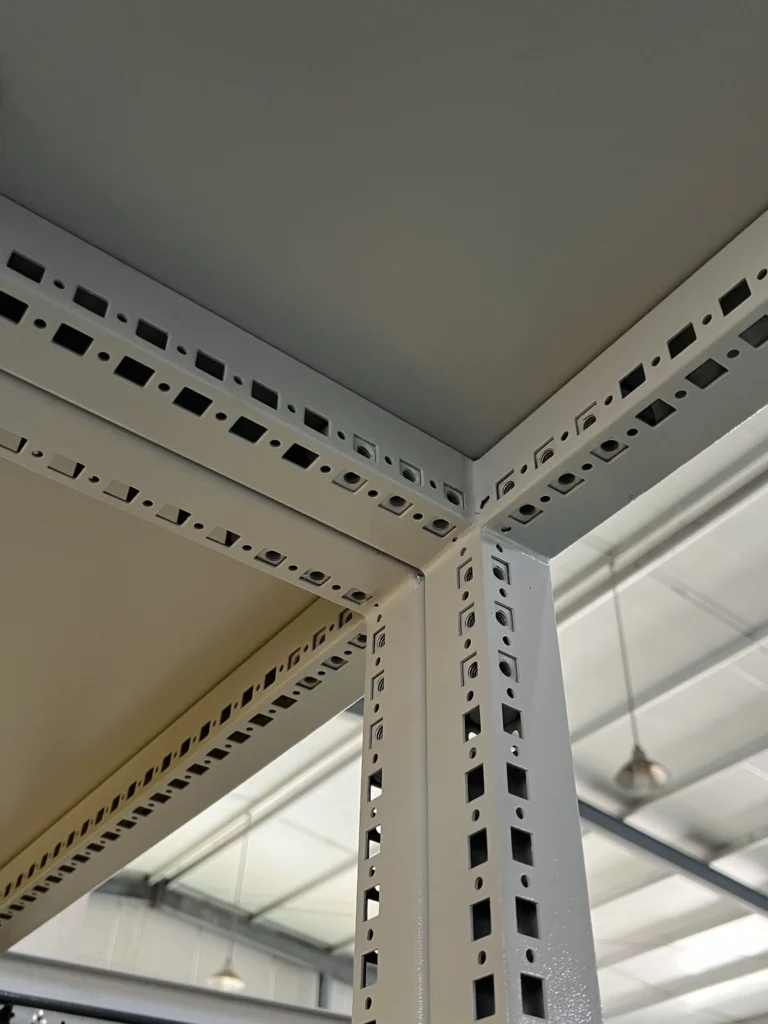

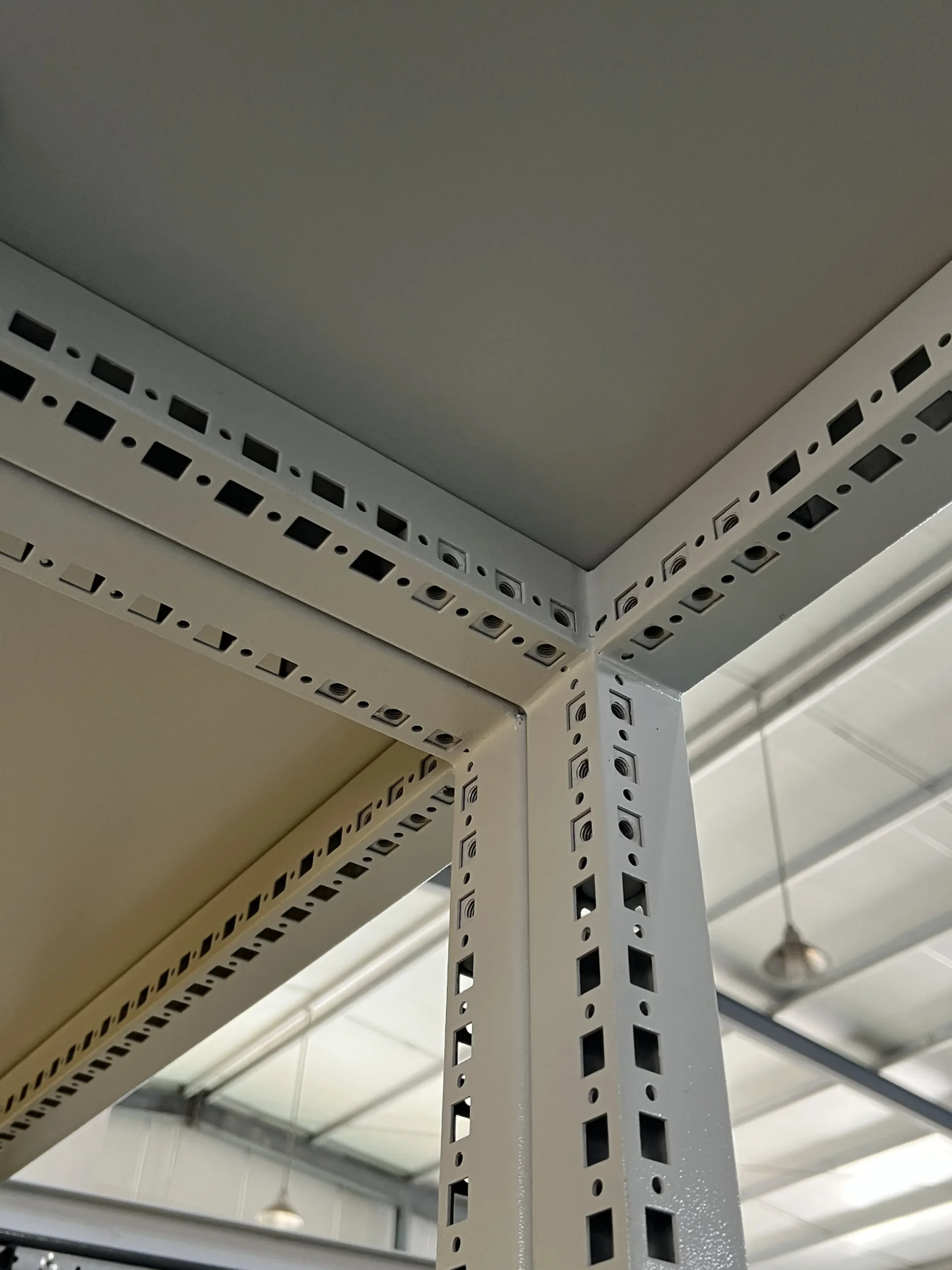

The 25mm pitch internal frame design provides flexible mounting points for electrical components, DIN rails, cable ducts, brackets, and control devices. This makes the cabinet suitable for industrial automation, power distribution, machine control systems, and customized electrical panel assembly.

The client required a modular control panel enclosure with the following specifications:

• Application: Industrial electrical control panel

• Structure: 25mm pitch modular frame enclosure

• Material: Cold-rolled steel

• Surface Finish: Powder coating, RAL7035

• Door: Front door with MS867 lockable handle

• Frame: Modular internal frame with 25mm hole pitch

• Mounting: Internal mounting plate for electrical components

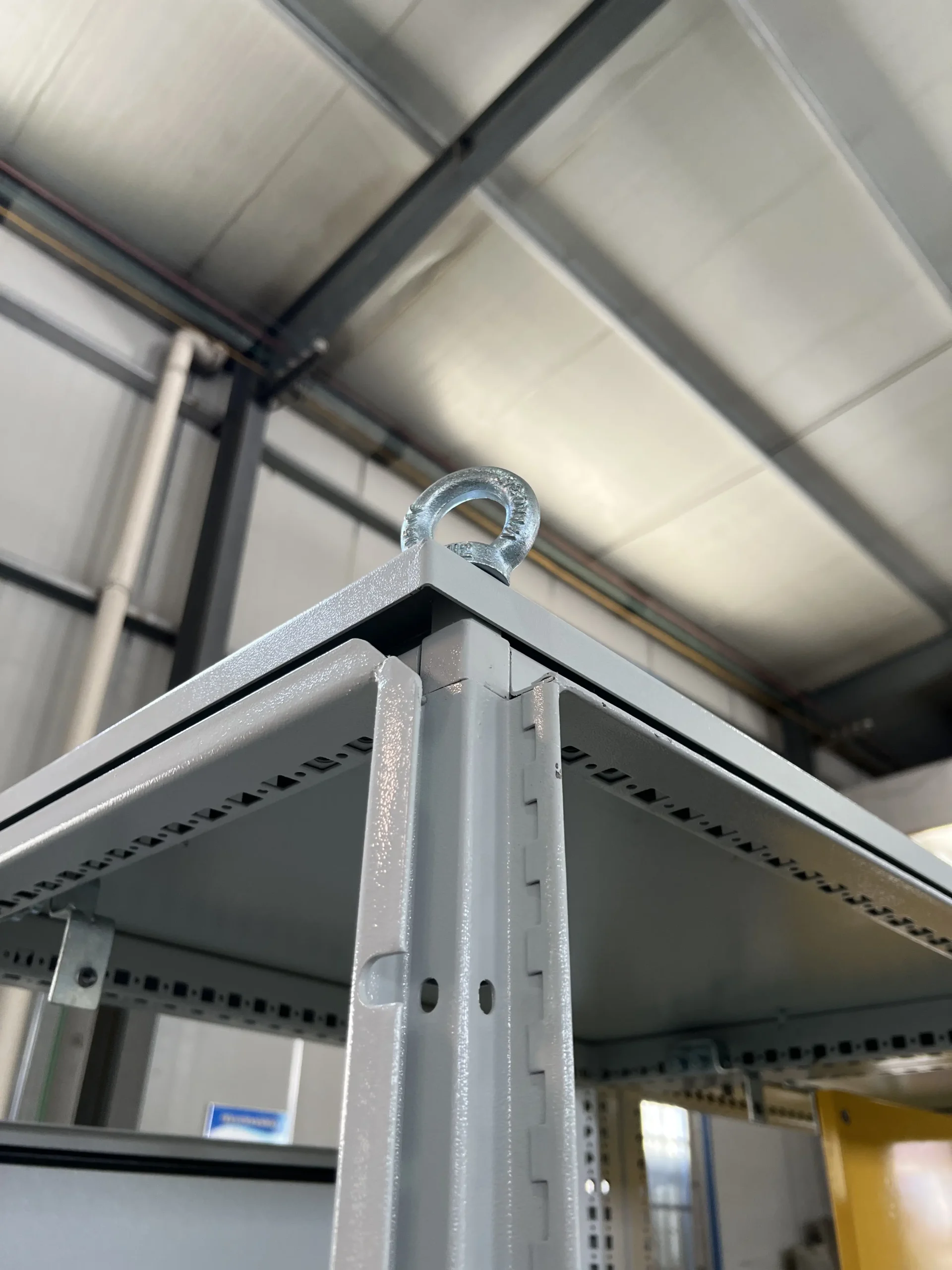

• Lifting: M12 eye bolts for cabinet lifting and handling

• Sealing: PU gasket and silicone sealing design

• Hardware: Hinges, bolts, brackets, handle system, and panel accessories

• Manufacturing Basis: Customer-approved technical drawing

• Customization:Cabinet structure, panels, holes, brackets, and internal layout made according to drawing

Based on the customer’s drawing, Vililong provided a complete custom enclosure manufacturing solution.

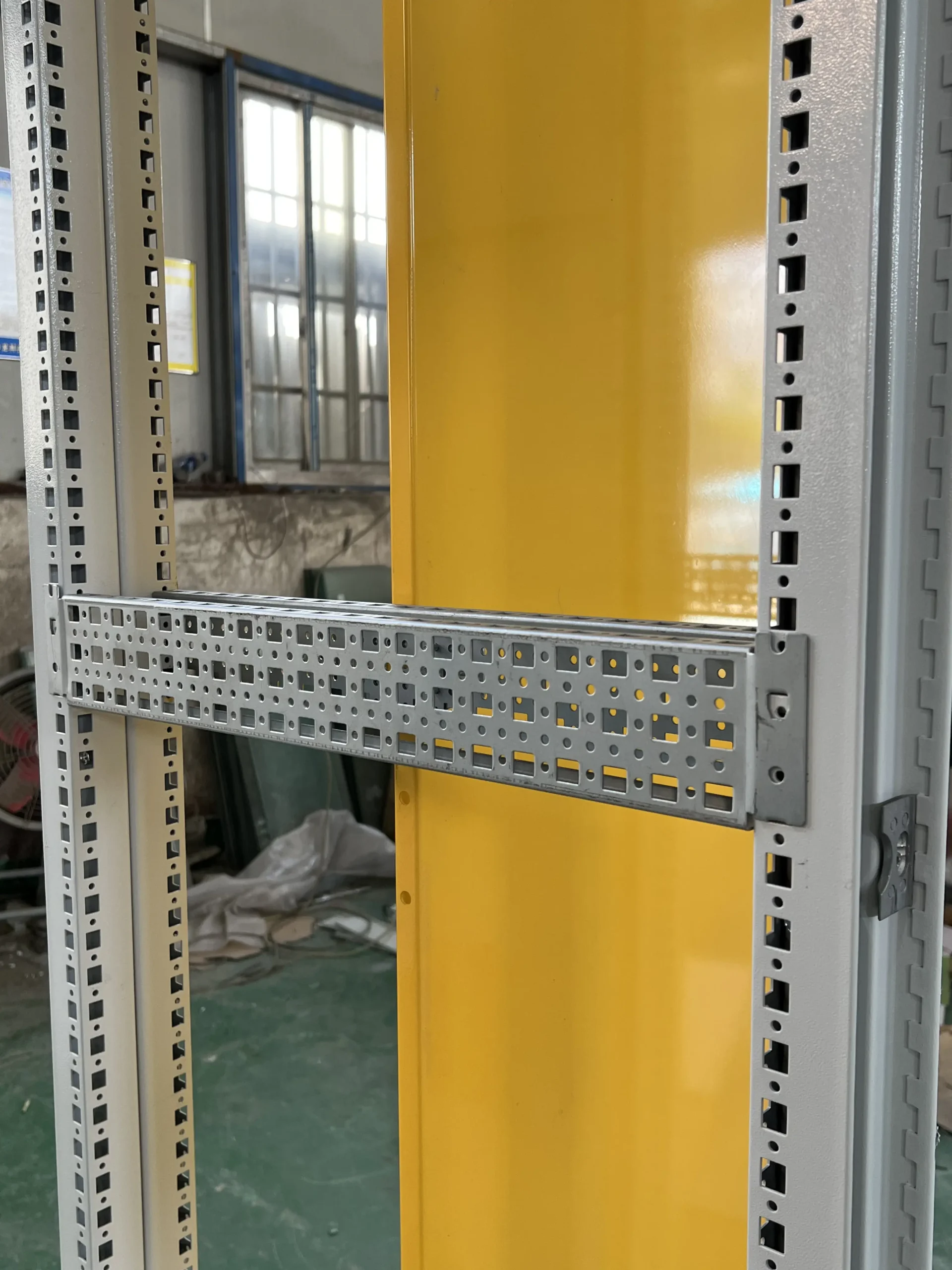

The enclosure was designed with a strong modular frame structure and removable outer panels. The internal 25mm pitch frame allows flexible installation of electrical components and accessories, while the internal mounting plate provides a stable base for control panel assembly.

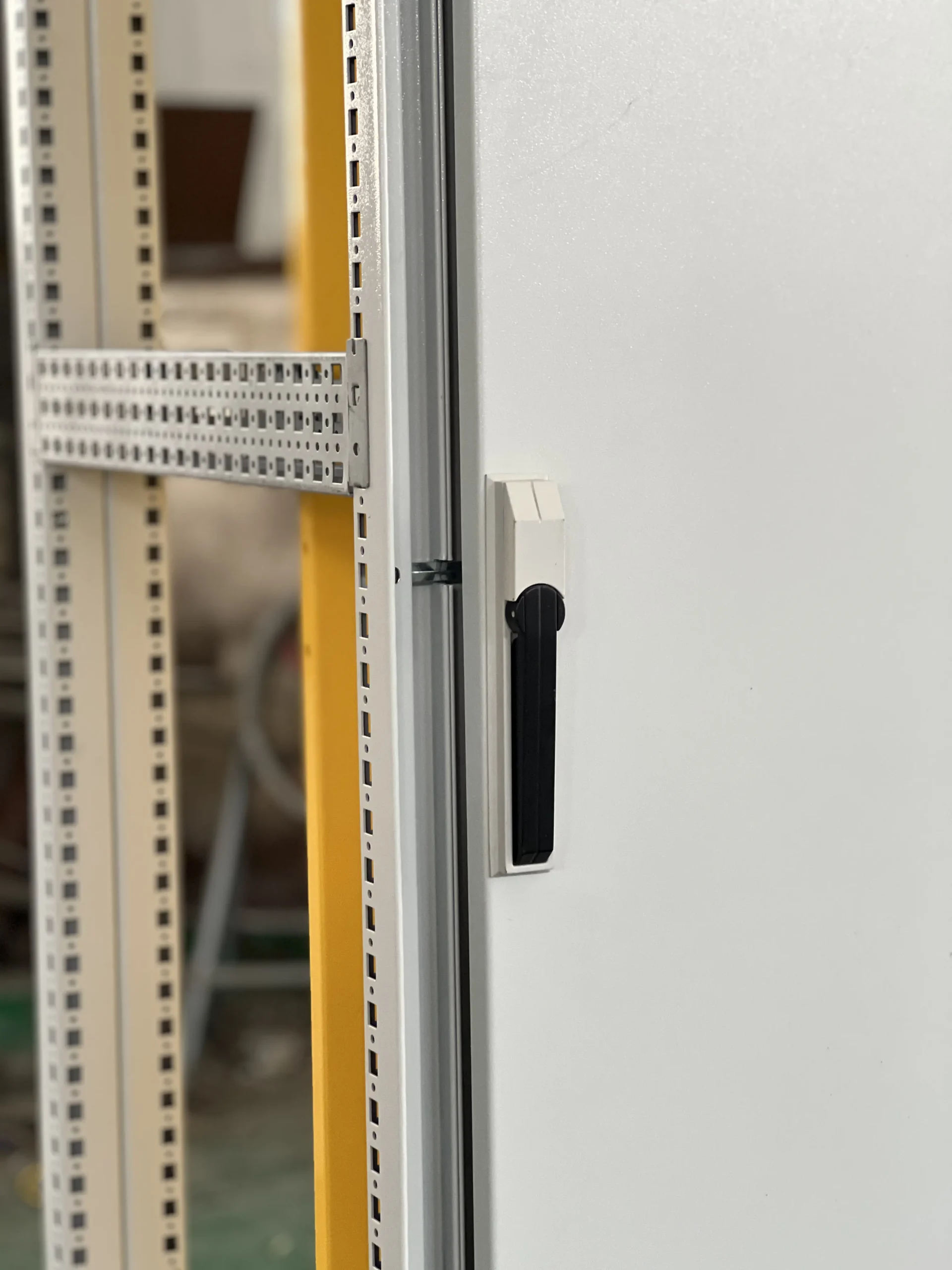

The door was equipped with a lockable handle system, hinges, sealing gasket, and reinforced brackets. The cabinet also included lifting eye bolts, side covers, top cover, bottom cover, back cover, and internal support brackets.

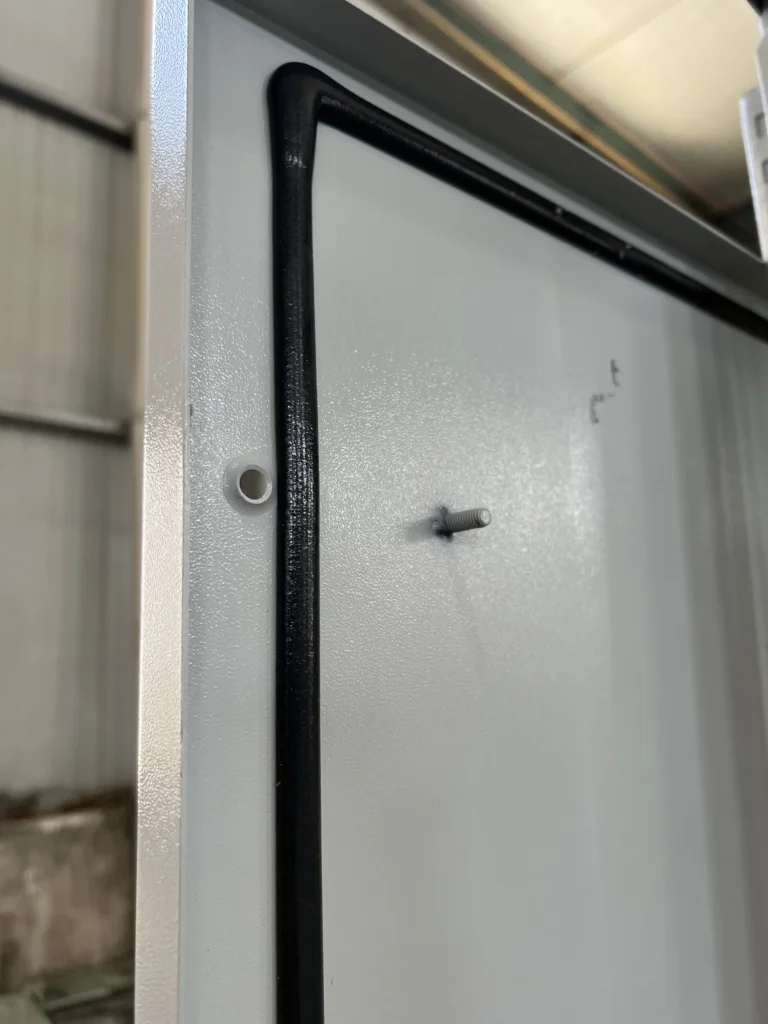

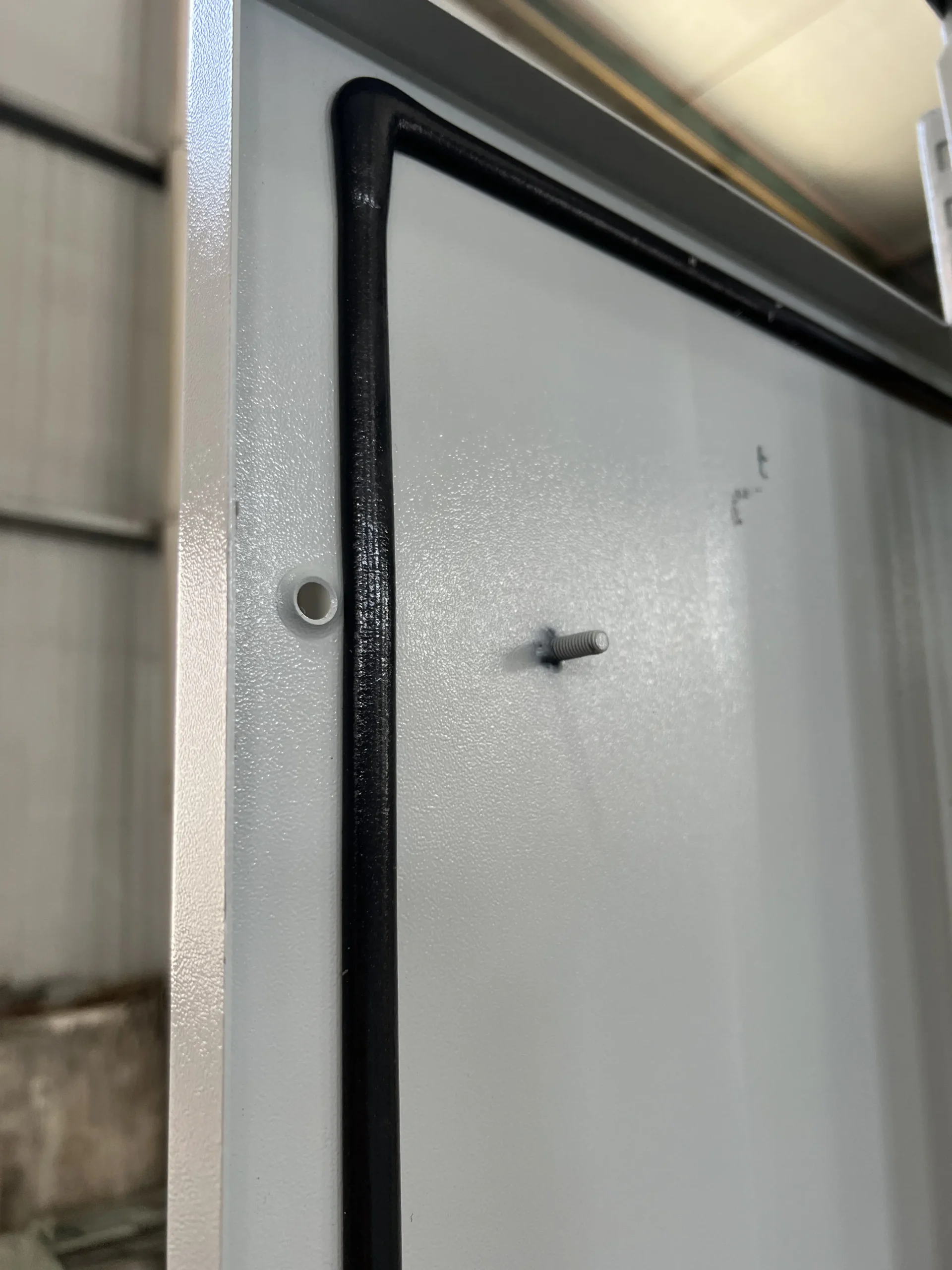

To improve sealing performance, the drawing specified gasket installation and silicone sealing in key areas. This helps improve protection against dust and moisture in industrial environments.

• Product Type: 25mm pitch modular electrical enclosure

• Application: Industrial control panel / electrical cabinet

• Main Structure: Modular steel frame

• Material: Cold-rolled steel

• Surface Finish: RAL7035 powder coating

• Frame Design: 25mm pitch modular frame

• Door Hardware: Lockable handle, hinges, handle brackets

• Lifting Accessories: M12 eye bolts

• Fasteners: M6 connection bolts and hexagon bolts

• Sealing: Polyurethane gasket, door gasket, silicone sealing

• Mounting System: Internal mounting plate and adjustable frame structure

• Customization Options: Size, holes, brackets, door structure, internal layout, and accessories

1. Drawing Review

Our engineering team reviewed the customer’s technical drawing, including overall structure, panel layout, frame design, hardware list, and detailed sectional views.

2. Material Preparation

Cold-rolled steel sheets were prepared according to the required structure and thickness. Main panels, frame parts, brackets, and internal components were produced based on the customer’s drawing.

3. Laser Cutting and Hole Processing

Panels, mounting holes, bracket holes, and frame openings were processed with precision cutting equipment to ensure accurate assembly.

4. CNC Bending and Forming

Door panels, side covers, frame parts, and supporting brackets were bent according to the drawing dimensions and structure.

5. Welding and Assembly

The modular frame, brackets, panels, hinges, handle system, eye bolts, and internal mounting plate were assembled according to the approved design.

6. Powder Coating

After fabrication, the enclosure was finished with RAL7035 powder coating to provide a uniform appearance and durable surface protection.

7. Sealing and Quality Inspection

PU gasket, door gasket, and silicone sealing were applied where required. Before shipment, the enclosure structure, door opening, hardware installation, sealing condition, and internal mounting system were checked.

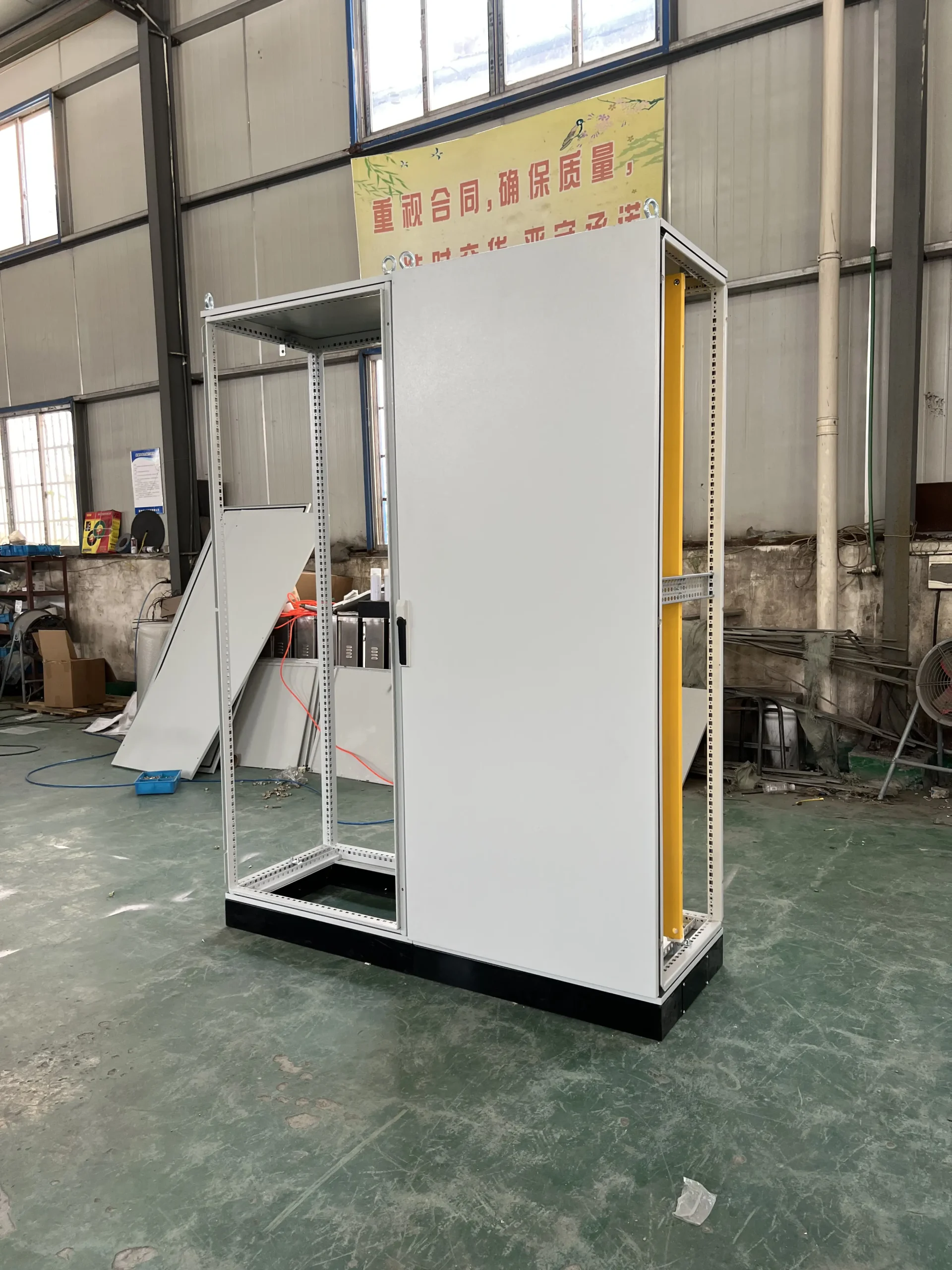

The final product is a customized 25mm pitch modular electrical enclosure suitable for industrial control panel assembly. The modular frame structure provides flexible installation options, while the cold-rolled steel construction, RAL7035 powder-coated finish, lockable door, internal mounting plate, gasket sealing, and lifting hardware make the cabinet practical for industrial applications.

This type of enclosure is suitable for:

• Industrial automation control panels

• Power distribution systems

• Machine control cabinets

• Electrical system integration

• OEM equipment control cabinets

• Custom modular electrical cabinet projects
