VPS Stainless Steel Modular Enclosure | IP54
VPS Stainless Steel Modular Enclosure Overview
Powder-Coated,IP54,IK10 (typical)
Features
- The main frame formed by the integral welding of the 9-fold profile frame can ensurethe high strength
- The Roof plate,Rear plate and Side plates can be removed for easy work operation
- Made of SUS304/316
- Door panel PU sealing strip to prevent dust and rain from penetrating
- Designed with a baying system, the enclosure enables multiple cabinets to be joined together into a complete and scalable solution
- Equipped with removable mounting plate
- IEC 60529 / EN 62208 / ISO 9001 / CE Standard
Support
- Custom sizes
- Material/Material thickness
- Lock/Hinge/Stiffener
- Different powder coating colors and finishes
- Custom Logo/Text
- Pre-cut holes for cable entry and ventilation
VPS Stainless Steel Modular & Freestanding Enclosure
*Some content and parameters are for reference only. Our company can adjust performance and customize processing according to customer needs.
Technical Data
| Material | SUS304 |
| Surface reatment | Wire drawing,and mounting plate is galvanized |
| Protection grade | IP54 (acc.to GB4205-1993) |
| Standard configuration | Front door Back plate Movable mounting plate Door lock Stopper Floder LED light Side plate(option) |
Standard Configuration
- Front door,Roof and Rear plate,Mounting plate,9-Folds profies frame,Side panels (optional)
- 1*Flat turn out lock
- 2*Longeron with 25mm hole pattern
- 4*Bearing suspension loop
- 2*Mounting strips on the door
- Folder on the door panel
- Lighting
- Door stay
| Model | Height1 (mm) | Height2 (mm) | Width (mm) | Depth (mm) |
|---|---|---|---|---|
| VPS001 | 1800 | 100 | 800 | 600 |
| VPS002 | 1800 | 100 | 1000 | 600 |
| VPS003 | 1800 | 100 | 1200 | 600 |
| VPS004 | 2000 | 100 | 800 | 600 |
| VPS005 | 2000 | 100 | 1000 | 600 |
| VPS006 | 2000 | 100 | 1200 | 600 |
Key Features & Technical Advantages
The VPS series is engineered to withstand harsh industrial conditions, ensuring your internal distribution components and switchgear remain completely safe from moisture, dust, and mechanical impacts

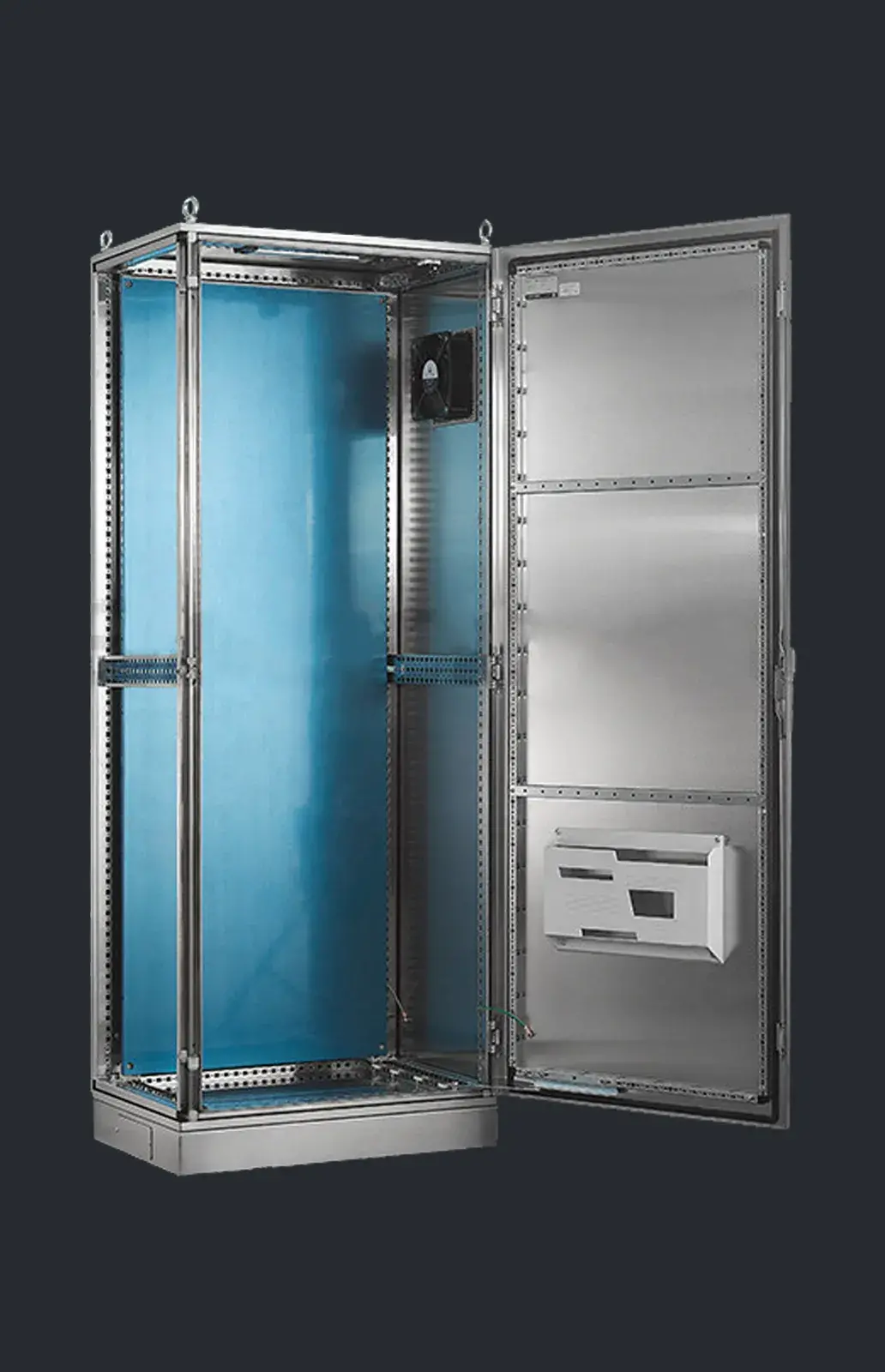

Modular frame with baying system

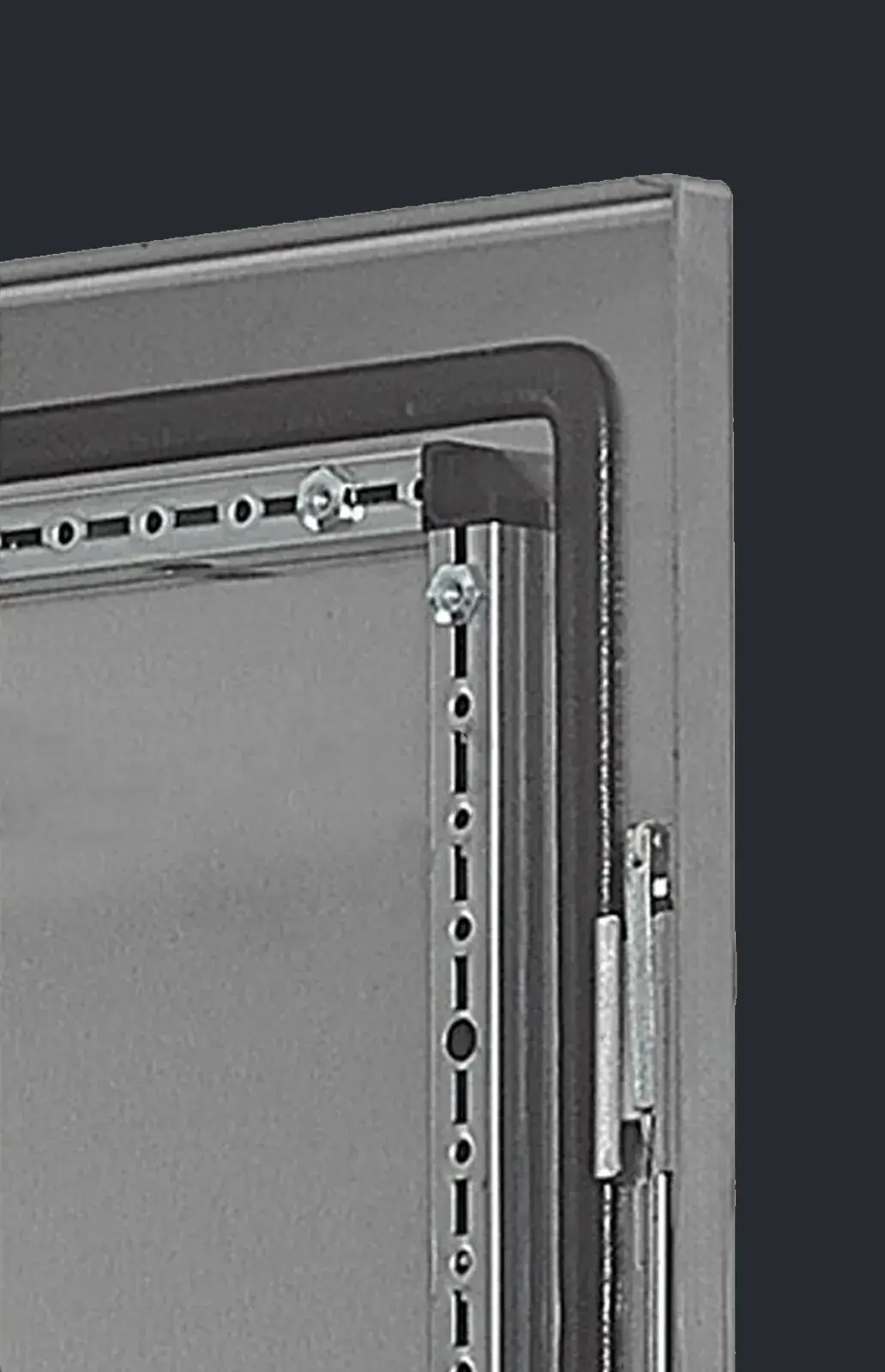

PU foamed sealing gasket & tubular stiffeners on door

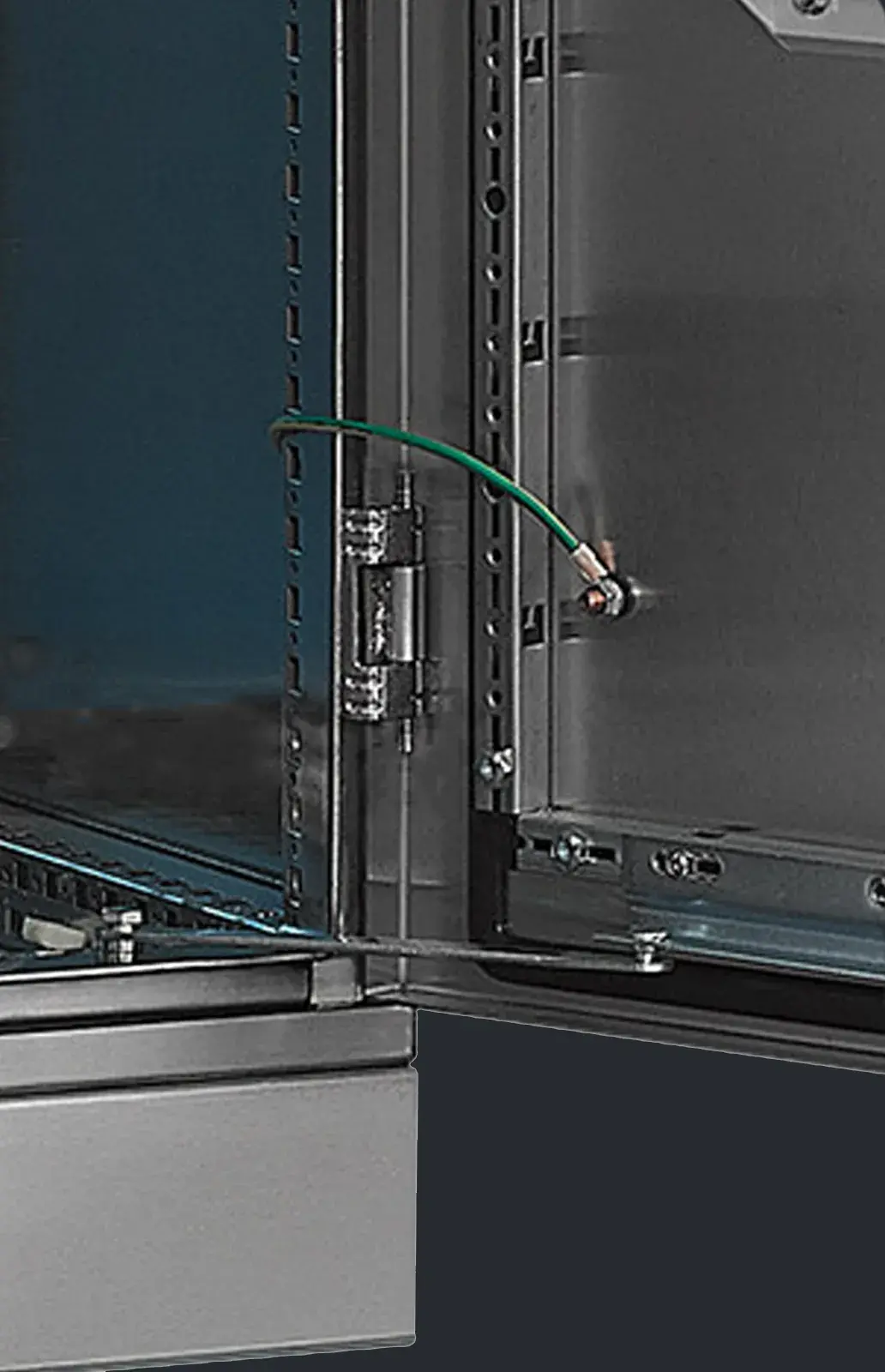

Door stay

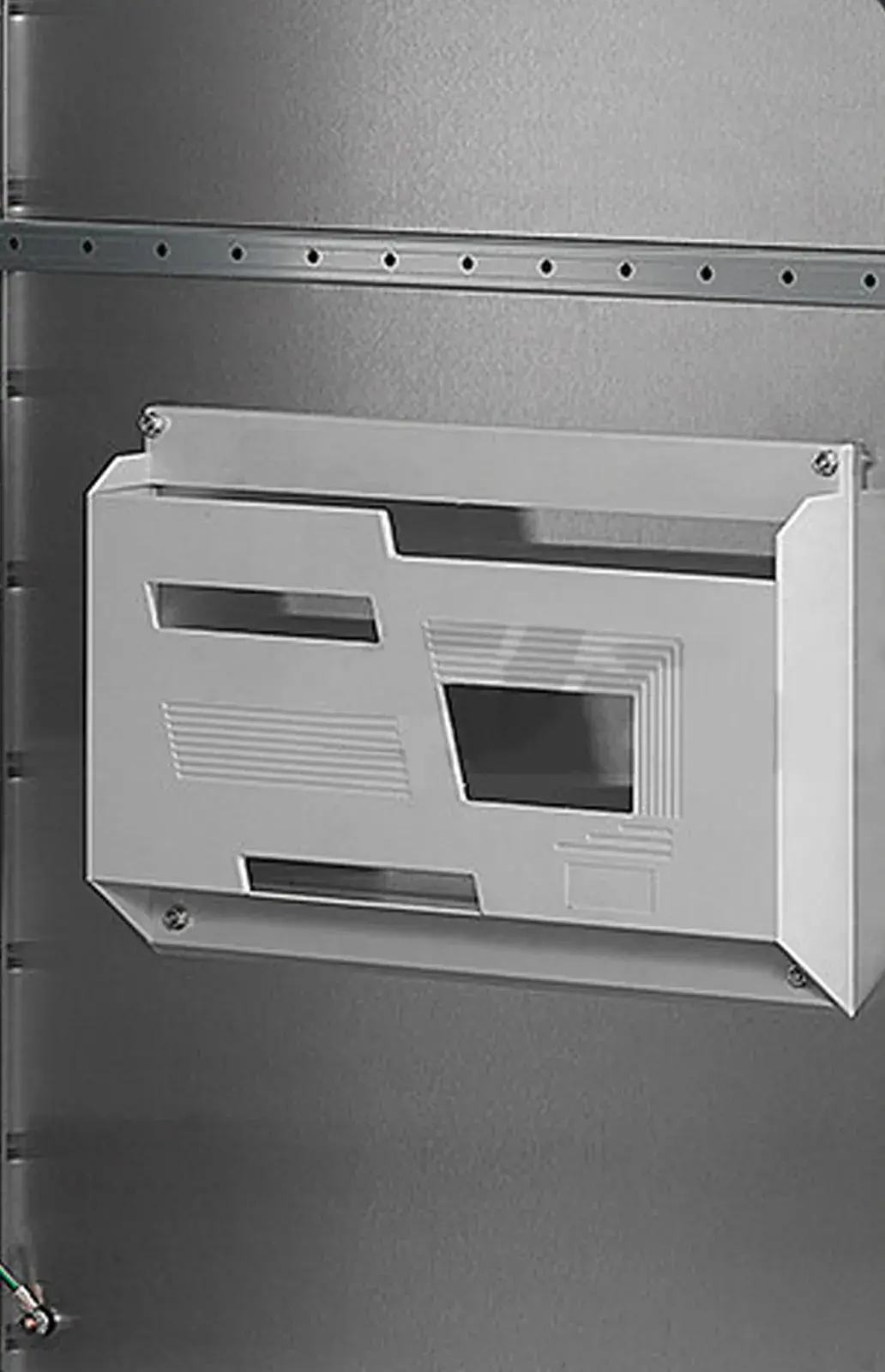

Folder

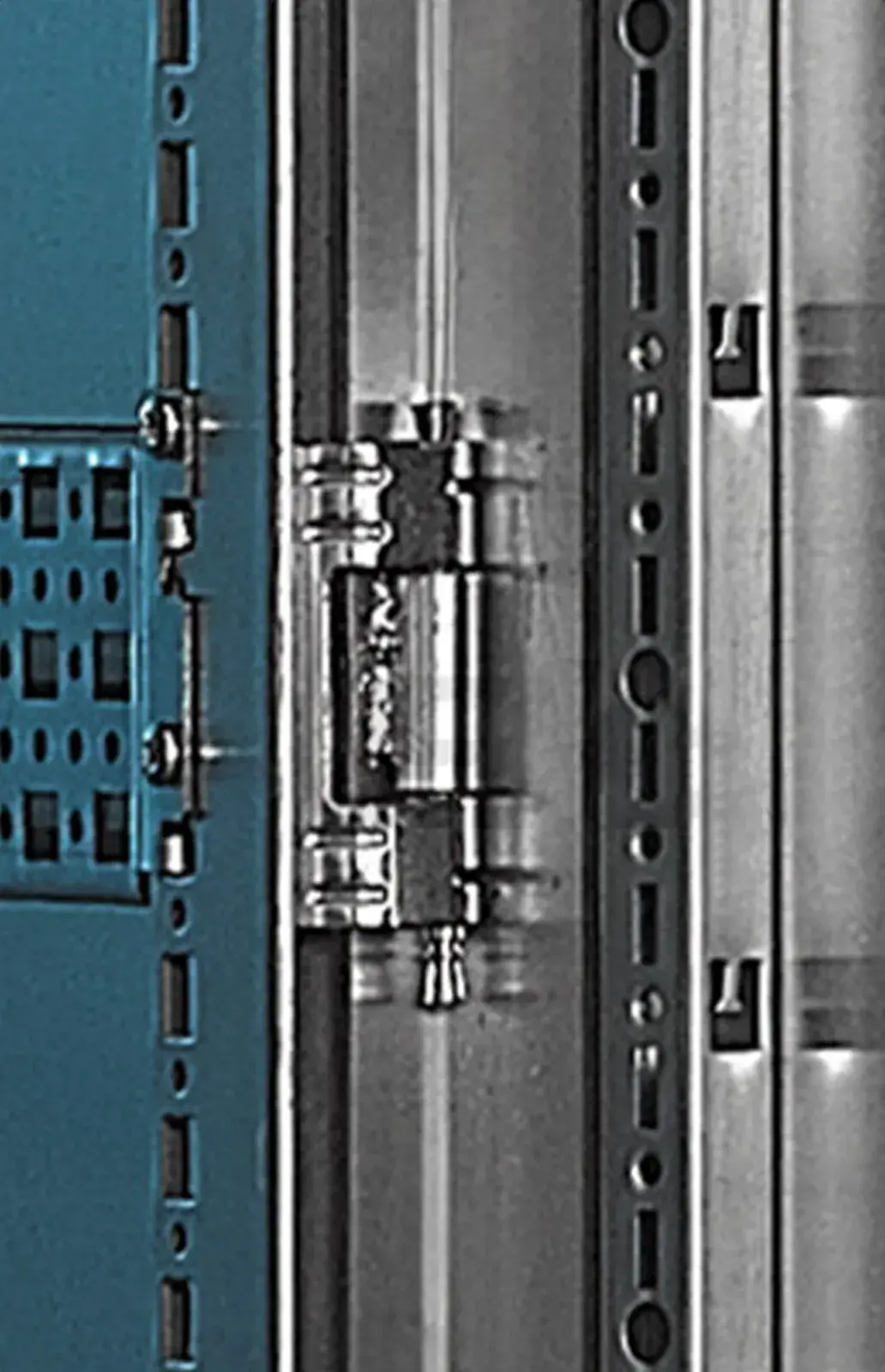

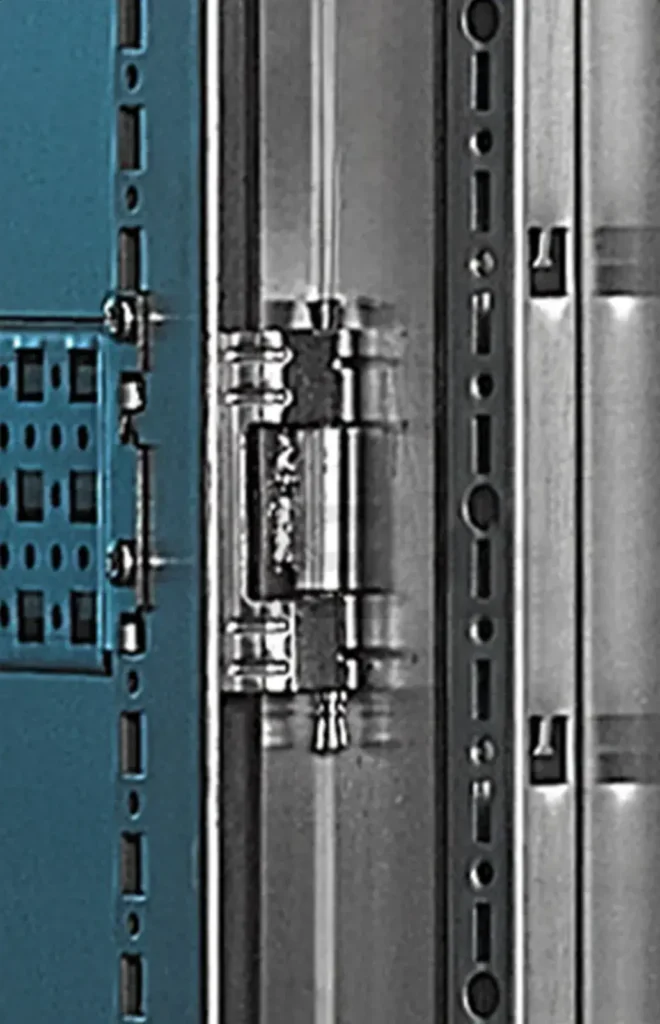

Reinforced Heavy-Duty Hinges for Long-Term Reliability

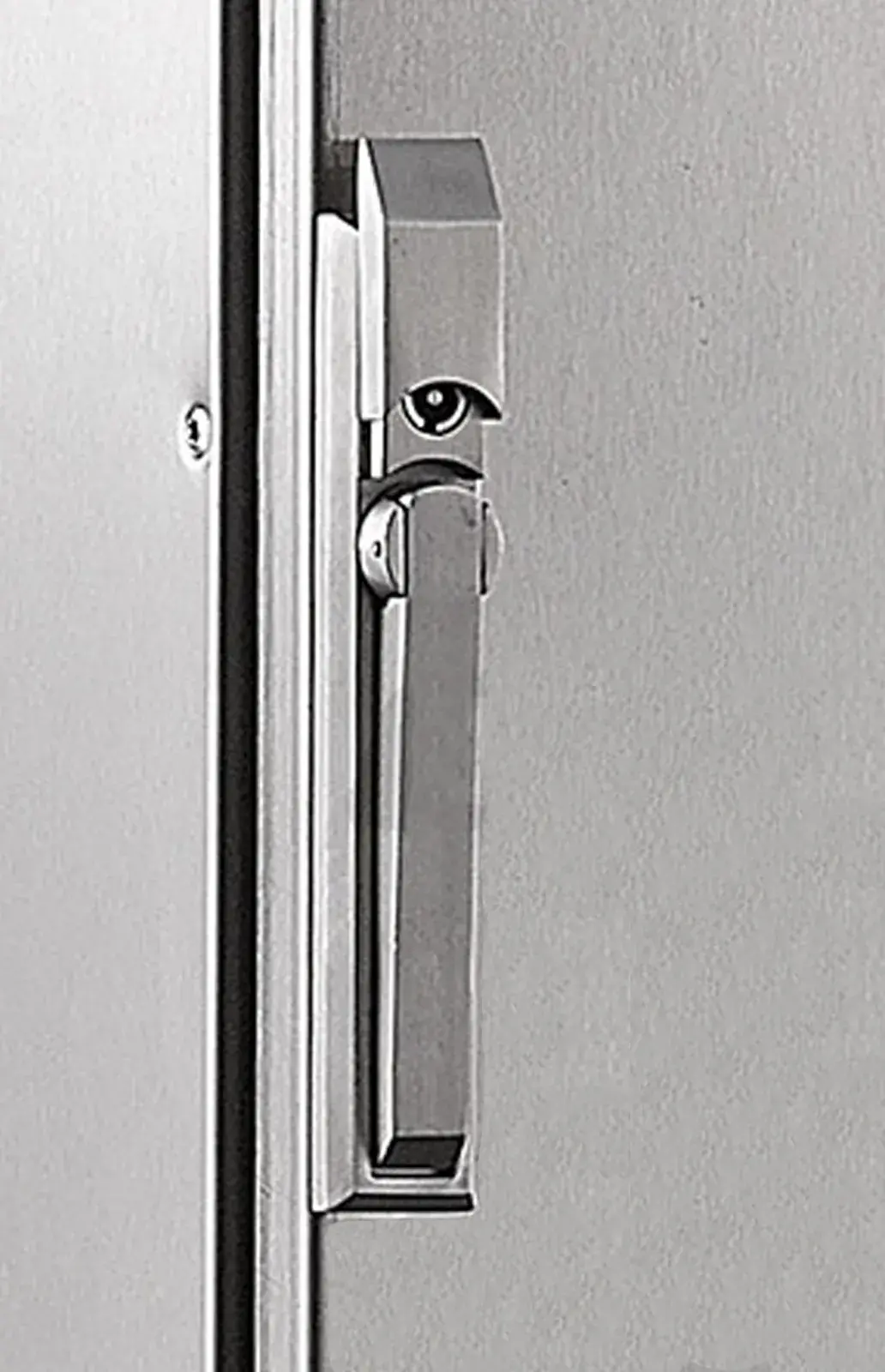

MS867 Lock – Color Matched to RAL7035 for Unified Appearance
Optional Accessories
Flexible accessory options available to meet project-specific installation requirements
Optional: Viewing Window & Air Conditioner
Cooling Fan & Air Filter Ventilation
Air Filter Ventilation
Flexible Baying System for Modular Cabinet Integration
Modular enclosures are designed with a baying system that enables multiple cabinets to be joined together into a complete and scalable enclosure solution.
This approach is commonly used in power distribution, automation, and industrial control applications, allowing flexible system expansion, optimized layout, and efficient integration.
The baying structure ensures stability, modular flexibility, and long-term adaptability for complex installation requirements.
Premium Protection for Corrosive & Harsh Environments
Manufactured from premium SUS304 or SUS316 stainless steel, our enclosures are engineered for applications requiring superior corrosion resistance and long-term durability
Offshore
Chemical
Food-Grade
Coastal
304 vs 316 Stainless Steel – Which Grade Fits Your Application?
Select the appropriate stainless steel grade based on corrosion exposure, environmental conditions, and project requirements
SUS304 Stainless Steel
SUS304 stainless steel enclosures offer reliable corrosion resistance and cost-effective performance for most industrial applications
• Suitable for indoor, outdoor, and humid environments
• Excellent resistance to general moisture and oxidation
• Ideal for factories, automation systems, and power distribution
• Most widely used stainless steel grade for industrial enclosures
Recommended for projects requiring durability with balanced cost efficiency.
SUS316 Stainless Steel
SUS316 stainless steel provides enhanced corrosion resistance for aggressive and high-salinity environments
• Superior resistance to salt spray and chemical corrosion
• Ideal for marine, coastal, and chemical processing environments
• Recommended for food-grade and hygienic applications
• Extended service life in demanding outdoor conditions
Recommended when maximum corrosion resistance is required.
FAQs About VPS Modular Enclosure
1. What is the difference between the VPS enclosure and a typical free-standing cabinet?
The PS series uses a modular welded frame structure similar to Rittal PS4000, offering higher rigidity and greater load-bearing capacity compared with conventional free-standing cabinets. It also supports more flexible expansion, such as side-by-side baying, internal partitioning, and additional mounting accessories.
2. How durable is the powder-coated finish?
The enclosure is coated with electrostatic epoxy powder, offering high abrasion resistance, smooth finish, and strong protection against scratches, humidity, oil mist, and general industrial conditions. Standard colors include RAL7035 or custom RAL finishes.
3. Is the VPS enclosure compatible with Rittal PS 4000 mounting plates and accessories?
Yes. The internal structural dimensions and mounting pattern can be made fully compatible with Rittal PS4000 standards upon request, including mounting plates, internal rail spacing, side panels, and door hardware.
4. What ventilation or thermal management options are available?
The VPS cabinet supports natural ventilation, filtered fans, cooling units, heat exchangers, rooftop ventilation hoods, and custom louver openings. Airflow can be optimized based on internal heat load and equipment placement.
5. Does the VPS enclosure include a base or plinth system?
Yes. The VPS cabinet uses a plinth/base module similar to Rittal’s design, providing cable access, easier installation, and a stable platform. The plinth height can be customized (100/200 mm typical).
6. Does the VPS enclosure support modular baying for multi-cabinet assemblies?
Absolutely. The cabinet can be bayed side-by-side using connection kits to build multi-bay systems, similar to Rittal PS4000 setups.
Need help selecting the right IP65 Stainless Steel Modular Enclousre?
Our engineering team can recommend the best solution based on your application, environment, and budget.
