VES Stainless Steel Freestanding Enclosure | IP65
VES Stainless Steel Freestanding Enclosure Overview
Corrosion-resistant,IP65,IK10 (typical)
Features
- Made of SUS304/316 by bending and welding
- The Rear panel can be removed for easy work operation
- Door panel PU sealing strip to prevent dust and rain from penetrating
- The main frame formed by the integral welding of the five-fold profiles can ensurethe high strength
- Equipped with removable mounting plate,three-section flexible inlet/outlet line device
- IEC 60529 / EN 62208 / ISO 9001 / CE Standard
Support
- Custom sizes
- Material/Material thickness
- Lock/Hinge/Stiffener
- Different powder coating colors and finishes
- Custom Logo/Text
- Pre-cut holes for cable entry and ventilation

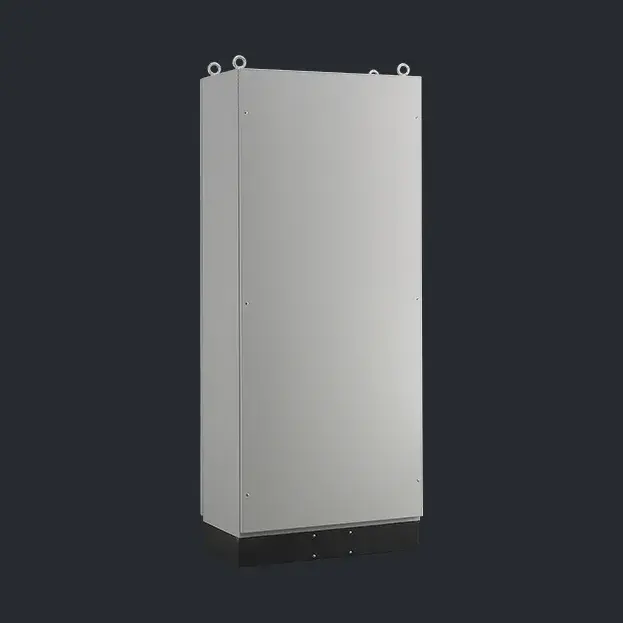

VES Stainless Steel Freestanding Enclosure
*Some content and parameters are for reference only. Our company can adjust performance and customize processing according to customer needs.
Technical Data
| Material | Enclosure frame: SUS304/316, 1.5 mm Roof,Rear and Side Panel: SUS304/316,1.5 mm Door: SUS304/316,2.0 mm Mounting plate: Galvanized sheet,2.0 mm Gland plates: SUS304/316,1.5 mm Plinth:SUS304/316,1.5mm |
|---|---|
| Surface reatment | Wire drawing,and mounting plate is galvanized |
| Protection grade | IP65 (acc.to IEC 60529) |
| Impact Resistance | IK10(typical) |
| Mounting plate | Galvanized sheet,Removable |
| Gasket | Door,rear panel: PU Foam Continuous Seal |
| Installation | Freestanding with Plinth |
| Locking System | MS867(Sus304) lock with key |
| Earthing | Door and body with M6 earthing stud |
| Optional Items | Ventilation fan, Thermostat, Louvered Openings,Viewing Window,Air Conditioner |
| Standard & Approvals | IEC 60529/EN 62208/ISO 9001/CE/RoHS |
Standard Configuration
- Enclosure body,Front door,Rear plate,Mounting plate
- 1*MS867 lock
- 2*Longeron with 25mm hole pattern
- 4*Bearing suspension loop
- 2*Mounting strips on the door
- Folder on the door panel
- Lighting
- Door stopper
| Size (W*H*D) | Materials | Surface Reatment | Thicknes(mm) Box body/Door Plate/Mounting Plate |
|---|---|---|---|
| 600*1200*400 | Sus304/316 | Wire Drawing | 1.2/1.5/2.0 |
| 700*1500*400 | Sus304/316 | Wire Drawing | 1.2/1.5/2.0 |
| 700*1700*400 | Sus304/316 | Wire Drawing | 1.5/2.0/2.0 |
| 800*1800*400 | Sus304/316 | Wire Drawing | 1.5/2.0/2.0 |
| 800*1800*600 | Sus304/316 | Wire Drawing | 1.5/2.0/2.0 |
| 800*2000*600 | Sus304/316 | Wire Drawing | 1.5/2.0/2.0 |
Key Features & Technical Advantages
The VPS series is engineered to withstand harsh industrial conditions, ensuring your internal distribution components and switchgear remain completely safe from moisture, dust, and mechanical impacts

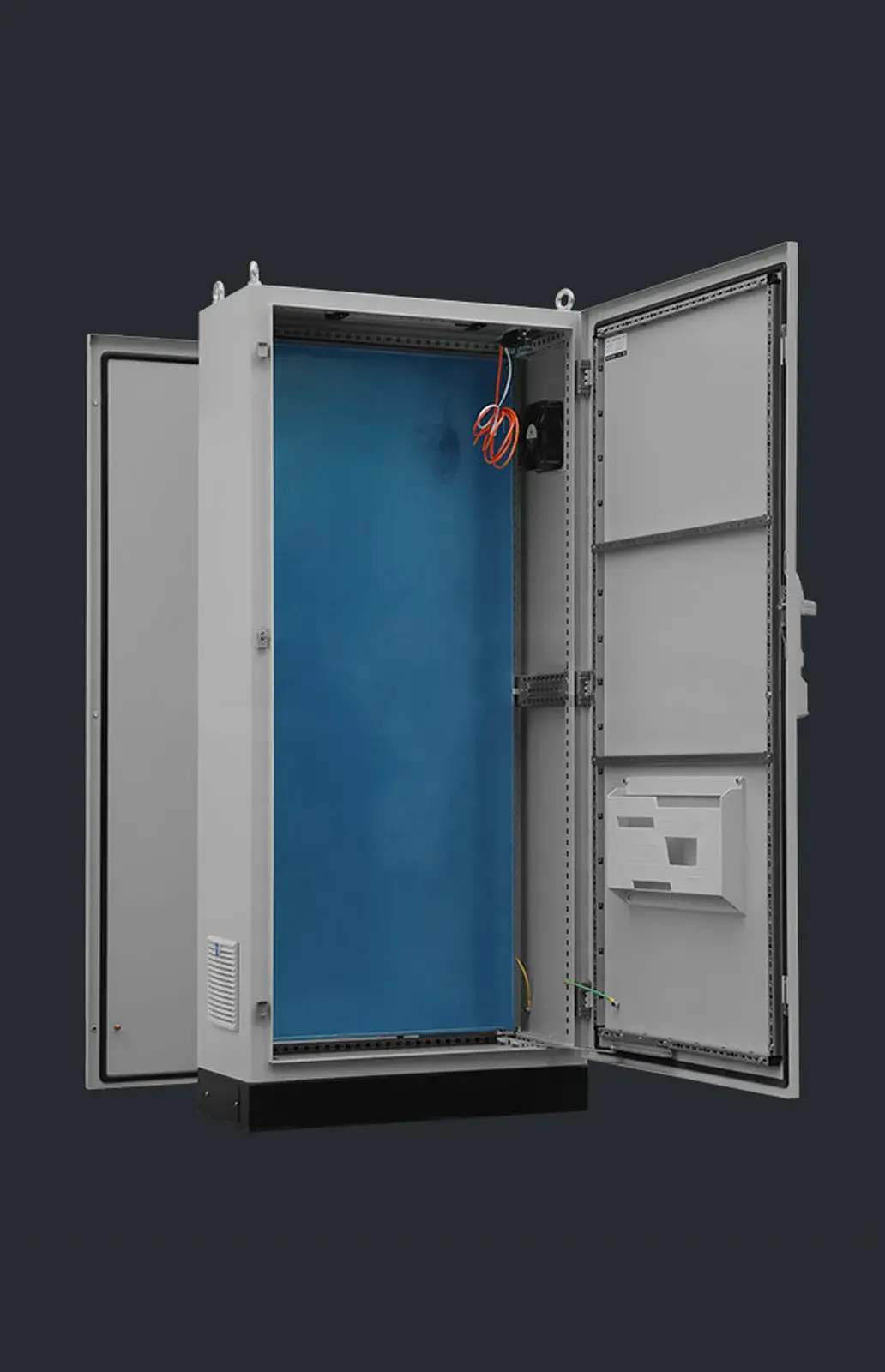

Rear plate removeable
PU foamed sealing gasket & tubular stiffeners on door
Door stay
Folder
Heavy-Duty Hinges
Lock
Optional Accessories
Flexible accessory options available to meet project-specific installation requirements
Optional: Viewing Window & Air Conditioner
Cooling Fan & Air Filter Ventilation
Air Filter Ventilation
Reliable IP65 Protection Standards
Built to maintain long-term sealing reliability even in demanding industrial and outdoor environments
Certified IP65
Certified IP65 protection against dust ingress and water jets
Certified CE
CE certified for compliance with international safety and quality standards
Machine-Foamed
Machine-foamed continuous PU gasket ensures reliable waterproof sealing performance
Precision-formed structure
Precision-formed enclosure structure enhances rigidity and maintains IP65 sealing integrity
304 vs 316 Stainless Steel – Which Grade Fits Your Application?
Select the appropriate stainless steel grade based on corrosion exposure, environmental conditions, and project requirements
SUS304 Stainless Steel
SUS304 stainless steel enclosures offer reliable corrosion resistance and cost-effective performance for most industrial applications
• Suitable for indoor, outdoor, and humid environments
• Excellent resistance to general moisture and oxidation
• Ideal for factories, automation systems, and power distribution
• Most widely used stainless steel grade for industrial enclosures
Recommended for projects requiring durability with balanced cost efficiency.
SUS316 Stainless Steel
SUS316 stainless steel provides enhanced corrosion resistance for aggressive and high-salinity environments
• Superior resistance to salt spray and chemical corrosion
• Ideal for marine, coastal, and chemical processing environments
• Recommended for food-grade and hygienic applications
• Extended service life in demanding outdoor conditions
Recommended when maximum corrosion resistance is required.
FAQs About VES Stainless Steel Freestanding Enclosure
1. What is an SUS304 VES Freestanding Enclosure?
An SUS304 Stainless Steel ES Enclosure is a free-standing industrial enclosure designed for electrical control systems, power distribution, and automation equipment. Made from high-quality 304 stainless steel, it provides excellent corrosion resistance, durability, and protection in harsh environments
2. What are the key features of this freestanding Enclosure?
- High-strength SUS304 stainless steel for superior rust resistance.
- IP55 protection against dust and water.
- Free-standing modular design, easy to install and expand.
- Removable back panels for flexible wiring and maintenance.
- Secure locking system to prevent unauthorized access.
- Customizable dimensions and configurations.
3. Can the ES Freestanding Cabinet be customized?
Yes, we offer full customization, including:
- Custom dimensions and thickness to fit specific installations.
- Pre-cut holes for cable entry, displays, or ventilation.
- Optional cooling and heating systems for temperature-sensitive equipment.
- Variety of locks and hinges for security and accessibility.
- Powder-coated or brushed finish for additional protection.
4. How do I maintain an SUS304 ES Freestanding Enclosure?
- Regular cleaning with mild detergent to prevent surface staining.
- Avoid exposure to highly acidic or saline environments to reduce corrosion risk.
- Use stainless steel passivation treatments to enhance longevity in challenging conditions.
5. What industries use SUS304 ES Freestanding Cabinets?
SUS304 stainless steel ES cabinets are widely used in:
- Electrical and automation control (PLC cabinets, switchgear enclosures).
- Power distribution systems (low and medium-voltage panels).
- Food and beverage processing (hygienic and corrosion-resistant design).
- Pharmaceutical and chemical plants (resistant to chemicals and moisture).
- Renewable energy projects (solar, wind power enclosures).
- Marine and offshore applications (moderate corrosion resistance).
Need help selecting the right IP65 Stainless Steel Freestanding Enclousre?
Our engineering team can recommend the best solution based on your application, environment, and budget.
