VPS Stainless Steel Modular Enclosure
SUS304/316 • OEM & Customizable • MOQ 1 Unit
- Side-by-side baying capability
- Welded stainless modular frame
- The top plate is removable and the side plate is demountable,making work easier and simpler
- 9-fold structural frame
- Three-section flexibleinlet/outlet line device
- The door are reinforced with square tubes
- Modular holes with a spacing of 25mm on the frame ensures flexibility and universality of installation
- Brushed finish
- Door,roof,rear,side panel:PU Foam Continuous Seal
- High load-bearing mounting plate
- IP54 protection rating
- Stainless hinges & locks
- Custom sizes
- Material/Material thickness
- Lock/Hinge/Stiffener
- Different powder coating colors and finishes
- Custom Logo/Text
- Pre-cut holes for For wiring, ventilation, and component integration
VPS Stainless Steel Modular Enclosure
| Material | Enclosure frame: SUS304,1.5 mm Roof,Rear and Side Panel:SUS304/316,1.5 mm Door: SUS304/316,2.0 mm Mounting plate: Galvanized sheet,2.0 mm Gland plates: SUS304/316,1.5 mm Plinth:SUS304/316,1.5mm |
| Surface reatment | Enclosure frame, plinth,door,roof,rear,side panel are all Brushed Stainless Steel Finish |
| Protection grade | IP54 (acc.to IEC 60529) |
| Impact Resistance | IK10(typical) |
| Mounting plate | Galvanized sheet,Removable |
| Gasket | Door,roof,rear,side panel: PU Foam Continuous Seal |
| Installation | Freestanding with Plinth |
| Locking System | MS867 lock with key |
| Earthing | Door and body with M6 earthing stud |
| Optional Items | Ventilation fan, Thermostat, Louvered Openings |
| Standard & Approvals | IEC 60529/EN 62208/ISO 9001/CE/RoHS |
- Front door,Roof and Rear plate,Mounting plate,9-Folds profies frame,Side panels (optional)
- 1*Flat turn out lock
- 2*Longeron with 25mm hole pattern
- 4*Bearing suspension loop
- 2*Mounting strips on the door
- data box on the door panel
- Lighting
- Door stopper
| Size (W*H*D) | Materials | Surface Reatment | Thicknes(mm) Box body/Door Plate/Mounting Plate |
|---|---|---|---|
| 800*1800*600 | Sus304 | Wire Drawing | 1.5/2.0/2.5 |
| 1000*1800*600 | Sus304 | Wire Drawing | 1.5/2.0/2.5 |
| 1200*1800*600 | Sus304 | Wire Drawing | 1.5/2.0/2.5 |
| 800*2000*600 | Sus304 | Wire Drawing | 1.5/2.0/2.5 |
| 1000*2000*600 | Sus304 | Wire Drawing | 1.5/2.0/2.5 |
| 1200*2000*600 | Sus304 | Wire Drawing | 1.5/2.0/2.5 |
Material Selection Guide
| Powder-Coated Mild Steel | Stainless Steel SUS304 | Stainless Steel SUS316 | |
|---|---|---|---|
| Corrosion Resistance | ★★☆☆☆ (Medium) | ★★★★☆ (High) | ★★★★★ (Very High) |
| Environment Suitability | Indoor industrial, low-humidity areas | Indoor, humid, general corrosion environments | Coastal, marine, chemical exposure, high-salinity zones |
| Typical Applications | Automation systems, distribution cabinets, machine control panels | HVAC, food processing, telecom, general outdoor control cabinets | Marine installations, chemical/wastewater plants, harsh outdoor sites |
| Cost Level | Low | Medium | Higher |
Why Choose Stainless Steel VPS Enclosures?
-
Superior corrosion resistance
-
Suitable for outdoor / humid / coastal environments
-
Hygienic surface, ideal for food & pharmaceutical lines
-
Available in SUS304 or SUS316
-
Long service life with minimal maintenance
The Main Components of The Cabinet Frame
The frame is connected by 9-Fold Profiles, Three-Way Connection Element, and Frame Connectors. This is a Flat Pack System
VPS series Frame Detail
Mounting plate upper fixing bracket
Back panel nut bracket
Side panel attachment
Upper and lower locking rod blocks
130 Hinge
PS Support strip & PS punched section with mounting flange
PS punched section without mounting flange & Punched rail 23 x 23 mm
Middle lock block

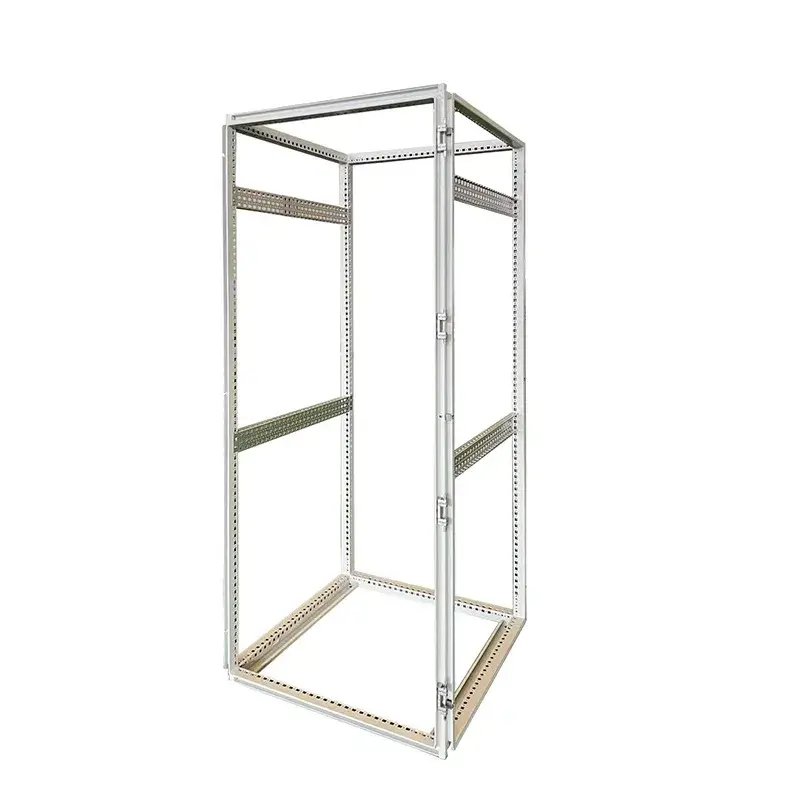

Nine-fold profile frame and three-way connector
Double door lock rod block
Mounting plate front and rear sliders
Flat Pack System Cabinet
A flat-pack system typically refers to a design or method of packaging products in a flat, compact form for ease of shipping, storage, and assembly. In many industries, this system is used to reduce transportation costs and space. The products are usually pre-cut and pre-drilled, allowing consumers or end-users to assemble the items themselves.
Some key benefits of flat-pack systems include:
- Cost Efficiency: Reduced shipping and storage space.
- Convenience: Easy for customers to transport and store.
- Customization: Parts can be designed to fit various configurations, making it adaptable for different uses.
In the context of metal enclosures or metalworking, a flat-pack system might be used for assembling electrical enclosures or cabinets. The pieces are shipped flat, and the end-user assembles them into a complete unit, often with tools like screws or rivets.
Combined Cabinet,suitable for combination
VPS series cabinets, when referred to as “cabinet assembly,” means connecting multiple VPS series cabinets together to form a complete cabinet system that meets higher equipment installation demands or more complex application environments. This design is commonly used in electrical equipment, distribution systems, or industrial control systems, allowing for flexible expansion and configuration.
FAQs About VAE Wall-Mounted Compact Enclosure
1. What is the difference between the VPS enclosure and a typical free-standing cabinet?
The PS series uses a modular welded frame structure similar to Rittal PS4000, offering higher rigidity and greater load-bearing capacity compared with conventional free-standing cabinets. It also supports more flexible expansion, such as side-by-side baying, internal partitioning, and additional mounting accessories.
2. What are the main differences between SUS304 and SUS316 for the VPS enclosure?
SUS304 offers excellent general corrosion resistance and is suitable for most outdoor and industrial environments.
SUS316 contains molybdenum (Mo), providing superior resistance to chlorides, salt spray, and harsh chemicals, making it ideal for coastal, marine, or chemical plant applications.3. Is the VPS enclosure compatible with Rittal PS 4000 mounting plates and accessories?
Yes. The internal structural dimensions and mounting pattern can be made fully compatible with Rittal PS4000 standards upon request, including mounting plates, internal rail spacing, side panels, and door hardware.
4. What ventilation or thermal management options are available?
The VPS cabinet supports natural ventilation, filtered fans, cooling units, heat exchangers, rooftop ventilation hoods, and custom louver openings. Airflow can be optimized based on internal heat load and equipment placement.
5. Does the VPS enclosure include a base or plinth system?
Yes. The VPS cabinet uses a plinth/base module similar to Rittal’s design, providing cable access, easier installation, and a stable platform. The plinth height can be customized (100/200 mm typical).
6. Does the VPS enclosure support modular baying for multi-cabinet assemblies?
Absolutely. The cabinet can be bayed side-by-side using connection kits to build multi-bay systems, similar to Rittal PS4000 setups.
7.What industries commonly use stainless steel VPS modular enclosures?
Stainless steel VPS cabinets are widely used in:
-
Food & beverage production
-
Pharmaceutical and hygienic facilities
-
Outdoor telecom and data systems
-
Pump stations and water treatment
-
Marine, coastal, and port facilities
-
Chemical and petrochemical plants
-
8.Is the stainless steel VPS enclosure suitable for washdown or sanitary environments?
Yes. The smooth No.4 brushed finish and corrosion resistance make it ideal for environments requiring frequent cleaning, such as food processing and pharmaceutical facilities.
