What Makes a High-Quality Electrical Control Cabinet?

The first and most critical factor is the sheet metal material.
High-quality enclosures start with cold-rolled steel, stainless steel (SUS304 / SUS316), or aluminum alloy.

Each material serves a specific environment:

An electrical cabinet’s Ingress Protection (IP) or NEMA rating determines how well it resists dust and water.
A true industrial-grade enclosure should be at least IP54, while IP65 or IP66 is preferred for outdoor applications.

• IP54: Dust-protected, splash-proof — suitable for clean indoor areas

• IP65: Fully dust-tight, resistant to water jets — ideal for factories and workshops

• IP66: Water-resistant against powerful jets — suitable for outdoor and harsh environments

Reputable manufacturers perform seal tests and use gasket compression analysis to verify the IP level.
If your supplier can’t show real test reports, the claimed “IP65” might just be marketing.

Even with good materials, a cabinet fails if it’s poorly fabricated.
Precision manufacturing ensures every door closes flush, hinges align smoothly, and mounting holes match your components.

Key processes to look for:

• CNC laser cutting — for clean edges and accurate dimensions

• CNC bending — ensures tight tolerances (±0.5 mm typical)

• Robotic welding & grinding — improves surface quality and structural strength

• Powder coating — uniform paint thickness and strong adhesion

Ask potential suppliers for process photos or plant certifications (ISO 9001).
Factories using automated equipment tend to produce more consistent quality, especially for OEM projects.

When selecting an enclosure thermostat, consider:

Modern projects rarely use “off-the-shelf” boxes.
A high-end manufacturer offers customization services, such as:

• Custom sizes and layouts

• Pre-cut holes for cable glands, HMI panels, and switches

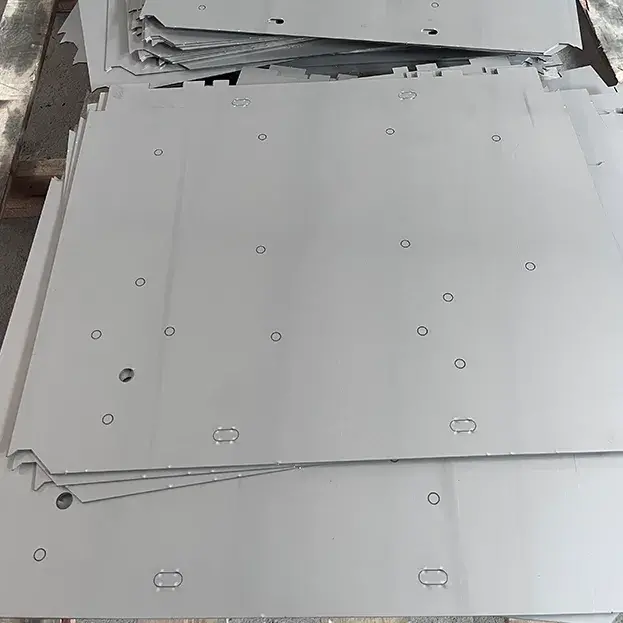

• Internal mounting plates and DIN rail assembly

• Optional windows, fans, filters, or ventilation slots

• Branding (logo silk printing or laser marking)

Customization reduces on-site machining, saving your engineers time and labor costs — and ensures compatibility with your equipment layout.

A control cabinet’s coating system directly affects its lifespan.
Professional factories perform multi-stage pretreatment (degreasing, phosphating, drying) before powder coating or polishing.

Common finishing options:

• Powder coating (RAL color) — indoor & outdoor standard

• Brushed stainless steel — premium look, corrosion resistance

• Hot-dip galvanizing or zinc plating — for utility or substation use

🧩 Bonus tip: If your cabinet will be used outdoors, confirm that the coating passes a salt-spray test (≥ 500 hours) according to ISO 9227.

Quality control doesn’t end after fabrication.
A reliable supplier performs final inspection on:

• Door sealing and gasket alignment

• Lock and hinge operation

• Earthing continuity test

• Dimensional accuracy (using CMM or gauges)

• Visual inspection for scratches or uneven coating

Top-tier manufacturers will also offer pre-assembly services — installing cable glands, brackets, or terminals according to your drawings — to shorten your project lead time.

For industrial or export projects, compliance is key.
A high-quality control cabinet should meet at least one of the following:

• CE / RoHS / ISO 9001 for Europe

• UL 508A / NEMA for North America

• IP / IEC 60529 test reports

• Factory test certificate (FAT) with serial number traceability

These documents not only prove compliance but also protect your brand reputation when your customer performs audits.

Don’t overlook packaging and logistics — they’re part of quality assurance too.
A strong supplier provides:

• Double-layer export cartons or wooden cases

• Foam protection and anti-rust film

• Clear shipping marks and inspection labels

• Responsive after-sales support (damage replacement policy)

A manufacturer that manages shipping carefully usually manages production carefully too.

A high-quality electrical control cabinet isn’t just metal and paint — it’s a combination of engineering precision, tested performance, and customer-focused service.

When sourcing enclosures in 2025, look beyond price.
Ask for certifications, inspect the finish, and communicate with the engineering team.
A few extra minutes of vetting can save weeks of rework and thousands in losses.
