Modular Enclosure Systems: Best Practices for Efficient Installation

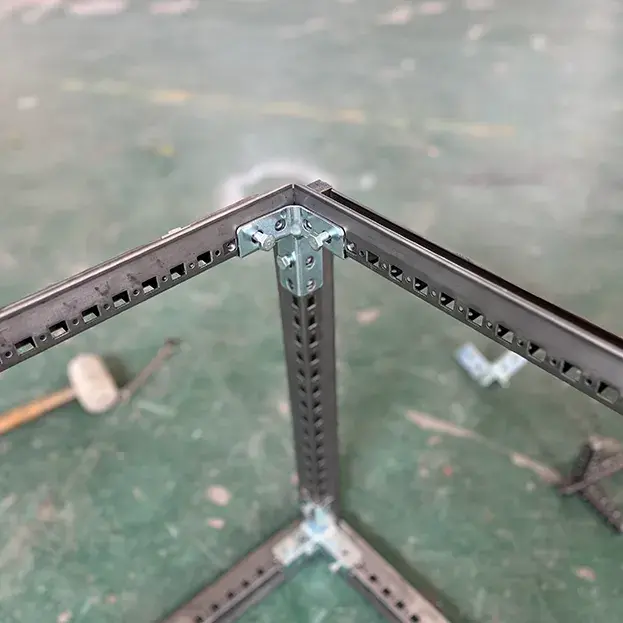

The heart of a modular enclosure is its frame-based design, which provides 30% more stability while reducing frame weight by 15% . We find that the frame consists of metal forms with strategically placed holes at standard distances, enabling seamless integration of accessories without drilling or welding. The strength comes from vertical frame members that efficiently transfer equipment weight, allowing for thinner, lighter external panels.

In our experience, the versatility of modular enclosures comes from their panel configuration options. These include:

• Removable and reversible doors
• Interchangeable side panels
• Variable mounting plate positions
• Wall partition compatibility
• Configurable top panels with removable gland plates

The mounting system forms a crucial component of modular enclosures. We’ve found that modern designs incorporate multiple mounting levels inside the cabinet, supporting various installation options. The system includes essential components like mounting rails with square-punched holes, drop-in hardware for quick installation, and formed-in-place foam gasket technology that meets NEMA Type 12 and IP 55 protection ratings.

The frame structure creates both inner and outer mounting levels, maximizing the space for electronics within the enclosure. This design approach allows for baying on all sides using a straightforward combination of brackets, clamps, and standardized tools, making the system highly adaptable to different space requirements.

Proper planning before installation is crucial for the success of any modular enclosure system project. We’ve found that thorough preparation can prevent up to 80% of common installation issues.

When evaluating the installation site, we must ensure the cement pad extends 6-8 inches larger than the enclosure on each side for proper anchorage. The foundation must be completely flat and capable of supporting a floor rolling load of 680kg (1500lb). For optimal stability, we recommend using stainless steel bolts or wedge anchors with 4-inch embedment, unless specified differently in application drawings.

For efficient installation, we maintain the following essential tools:

• Heavy-duty leveling equipment
• Certified anchoring hardware
• Grounding verification tools
• Sealing and gasketing materials
• Standard hand tools for assembly

Safety is paramount in modular enclosure installation. We strictly follow NFPA 70 guidelines and applicable sections of ANSI C2 for electrical safety compliance. For protection of both equipment and personnel, each cabinet must be individually grounded to the Telecommunications Equipment Bonding Conductor (TEBC).

When working with large cabinets, we ensure adequate assistance is available, as attempting to move them alone poses significant safety risks. The maximum resistance across bonded surfaces must be maintained at less than 5 milliohms. For installations in restricted access locations, we verify that only trained service personnel will have access to the equipment.

When evaluating the installation site, we must ensure the cement pad extends 6-8 inches larger than the enclosure on each side for proper anchorage. The foundation must be completely flat and capable of supporting a floor rolling load of 680kg (1500lb). For optimal stability, we recommend using stainless steel bolts or wedge anchors with 4-inch embedment, unless specified differently in application drawings.

For efficient installation, we maintain the following essential tools:

• Heavy-duty leveling equipment
• Certified anchoring hardware
• Grounding verification tools
• Sealing and gasketing materials
• Standard hand tools for assembly

Safety is paramount in modular enclosure installation. We strictly follow NFPA 70 guidelines and applicable sections of ANSI C2 for electrical safety compliance. For protection of both equipment and personnel, each cabinet must be individually grounded to the Telecommunications Equipment Bonding Conductor (TEBC).

When working with large cabinets, we ensure adequate assistance is available, as attempting to move them alone poses significant safety risks. The maximum resistance across bonded surfaces must be maintained at less than 5 milliohms. For installations in restricted access locations, we verify that only trained service personnel will have access to the equipment

We begin with the frame structure, which forms the backbone of the modular enclosure system. Our experience shows that proper alignment is crucial – the frame must be level and stable, with each component bolted securely to the building structure . For optimal stability, we ensure the four leveling feet make firm contact with the floor, preventing any rocking motion.

Following our proven installation method, we implement these key steps:

1. Install base channel with parallel beads of caulking
2. Position corner panels into base channel
3. Secure panels with appropriate fasteners
4. Install wall and partition panels sequentially
5. Add door panels as specified in drawings

The modular design allows us to slide panels into position from multiple angles, significantly improving installation efficiency compared to traditional unibody techniques.

We’ve found that proper cable management is essential for long-term reliability. Our recommended practices include:

• Implementing separate pathways for different cable types
• Using hook and loop fasteners for bundle management
• Installing front-to-rear cable lashing brackets to prevent interference with equipment space

For enhanced protection, we integrate fully-adhered water-resistive barrier (WRB) membranes over sheathing on exterior walls, which proves particularly effective in preventing moisture migration. This approach ensures both cable protection and system integrity.

The design allows for varied cable configurations while maintaining flexibility for future modifications. We pay special attention to maintaining proper bend radii for optimal data transmission and ensure all bundles are fastened securely but not too tightly.

Our testing begins with NEMA standards verification. We ensure enclosures meet specific NEMA ratings based on their intended environment and application. For outdoor installations, we verify protection against rain, sleet, and snow, while maintaining structural integrity during ice formation. Indoor applications require protection against falling dirt and circulating dust, with additional safeguards against dripping and light splashing of non-corrosive liquids.

In our EMI protection testing, we achieve attenuation levels exceeding -85 dB over the range of 20MHz to 18 GHz. For enhanced protection, we implement:

• Conductive gaskets providing 85-100 dB shielding up to 10 GHz
• Metal-to-metal contact points for electrical continuity
• Specialized EMI filters on data ports

We verify grounding connections using certified testing equipment, ensuring resistance across bonded surfaces remains below 5 milliohms for optimal protection.

Our verification process follows IEEE 299 testing methodology. We conduct comprehensive inspections during:

1. Receiving and processing phase
2. Fabrication and assembly
3. End-item verification
4. Pre-shipping inspection

For specialized applications, we achieve attenuation effectiveness of 100dB at 1GHz and 95dB at 6GHz. We maintain detailed records of all inspections and tests, which remain available for 180 days after acceptance. This documentation ensures traceability and compliance with quality control requirements.
