VAE Wall-Mounted Compact Enclosure with Rainhood
Customizable/OEM • Rainhood Included • MOQ 1 Unit
- Made of Carbon Steel/Stainless Steel plate by bending and welding
- The surface is treated with epoxy resin electrostatic spraying
- Door panel PU sealing strip to prevent dust and rain from penetrating
- Perforated mounting strips in the door
- The height above 800mm is equipped with square tube and pull bar lock
- Inlet and outlet holes are provided with hole cover plate（Sealing strip）
- Equipped with removable mounting plate
- IP65 protection rating
- Custom sizes
- Material/Material thickness
- Lock/Hinge/Stiffener
- Different powder coating colors and finishes
- Custom Logo/Text
- Pre-cut holes for cable entry and ventilation

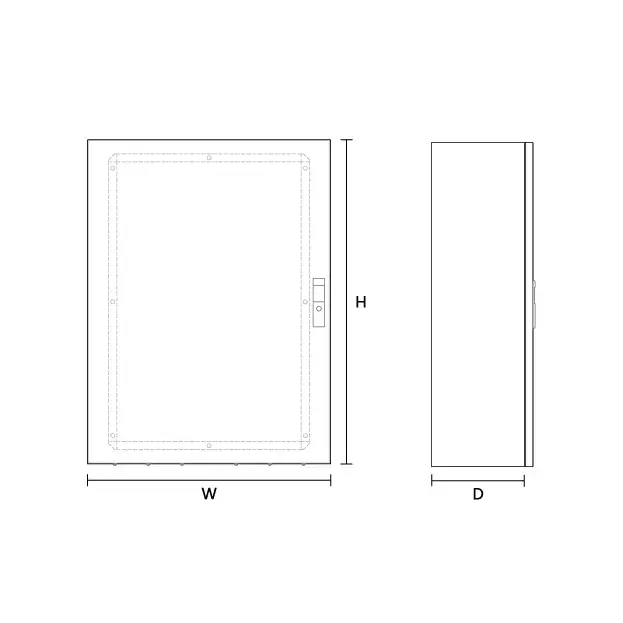

| Size（mm) (W*H*D) |
Mounting Plate Size（mm)（W*H） | Thicknes(mm) Box body/Door Plate/Mounting Plate |
|---|---|---|
| 250*300*150 | 200*250 | 1.2/1.2/1.2 |
| 300*400*150 | 250*350 | 1.2/1.2/1.2 |
| 400*500*150 | 350*450 | 1.2/1.2/1.2 |
| 300*400*200 | 250*350 | 1.2/1.2/1.2 |
| 400*500*200 | 350*450 | 1.2/1.2/1.2 |
| 400*600*200 | 350*550 | 1.2/1.2/1.2 |
| 500*600*200 | 450*550 | 1.2/1.5/1.5 |
| 500*700*200 | 450*650 | 1.2/1.5/1.5 |
| 600*800*200 | 550*750 | 1.2/1.5/1.5 |
| 600*1000*200 | 550*950 | 1.2/1.5/1.5 |
| 800*1000*200 | 750*950 | 1.2/1.5/1.5 |
| 400*500*250 | 350*450 | 1.2/1.2/1.2 |
| 500*600*250 | 450*550 | 1.2/1.5/1.5 |
| 500*700*250 | 450*650 | 1.2/1.5/1.5 |
| 600*800*250 | 550*750 | 1.2/1.5/1.5 |
| 600*1000*250 | 550*950 | 1.2/1.5/1.5 |
| 800*1000*250 | 750*950 | 1.2/1.5/1.5 |
| 400*500*300 | 350*450 | 1.2/1.2/1.2 |
| 500*600*300 | 450*550 | 1.2/1.5/1.5 |
| 600*800*300 | 550*750 | 1.2/1.5/1.5 |
| 800*1000*300 | 750*950 | 1.2/1.5/1.5 |

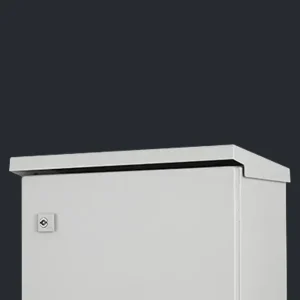

Technical Advantages of the Rainhood Design
The integrated rainhood is engineered to protect the enclosure from direct rainfall impact and top-side water accumulation.
Key technical enhancements include:
-
Overhanging canopy structure that prevents dripping on the door’s upper edge
-
Optimized slope angle ensuring water is directed away from the enclosure
-
Improved sealing performance when combined with PU foamed gasket
-
Reduced corrosion risk due to minimized moisture retention
-
Optional welded or bolted rainhood depending on required strength and serviceability
This design significantly improves real-world durability in outdoor installations, even though the enclosure retains its official IP65 rating.

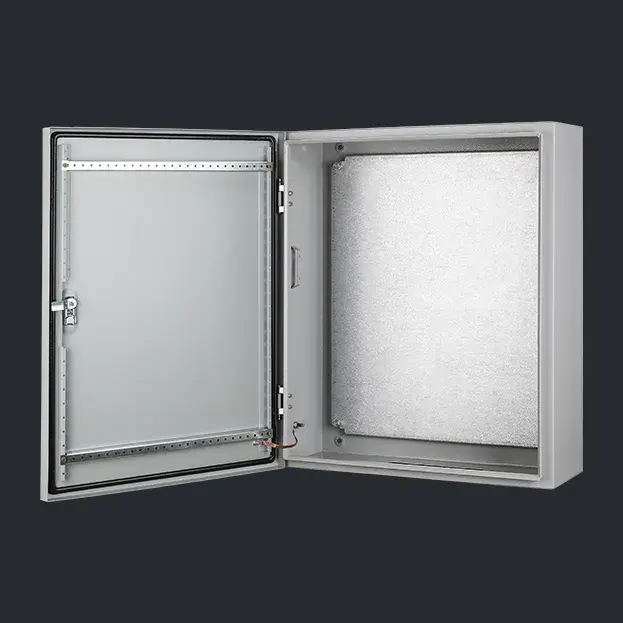

VAE Steel Compact Enclosure
| Material | Cold rolled steel |
| Surface reatment | Powder-Coated,RAL7035 |
| Protection grade | IP65 (acc.to IEC 60529) |
| Impact Resistance | IK10(typical) |
| Mounting plate | Galvanized sheet,Removable |
| Temperature Range | 40℃ to 80℃ |
| Gasket | PU Foam Continuous Seal,Machine Foamed |
| Installation | Wall Mounting |
| Locking System | MS813 with key |
| Earthing | Door and body with M6 earthing stud |
| Standard configuration | Door plate, Box body, Sealing strip, Grounding set, Mounting plate, Door lock |

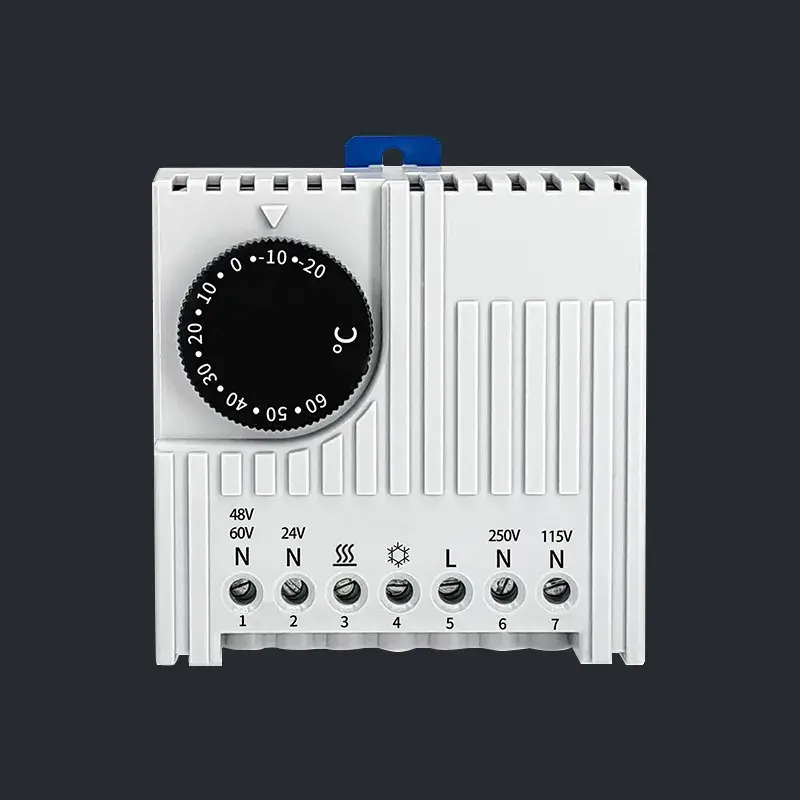

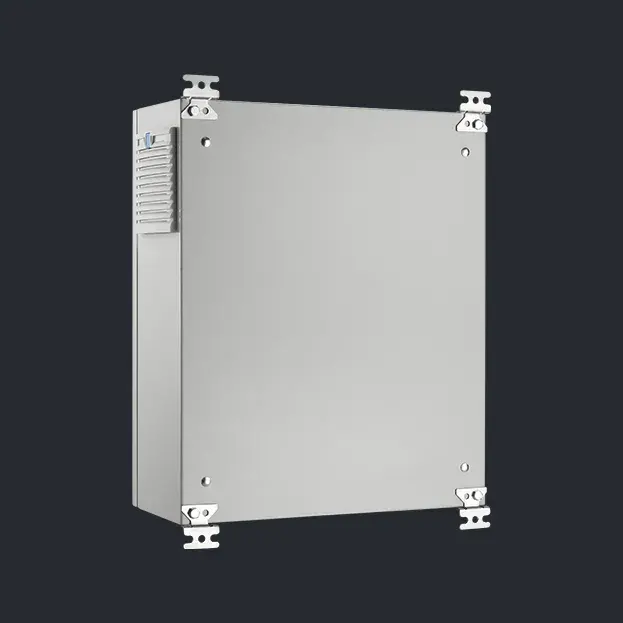

| Optional Items | Ventilation fan, Thermostat, Rainhood, Louvered Openings, Inner door, Viewing Window, Wall Mounting Bracket |
| Standard & Approvals | IEC 60529/EN 62208/ISO 9001/CE/RoHS |

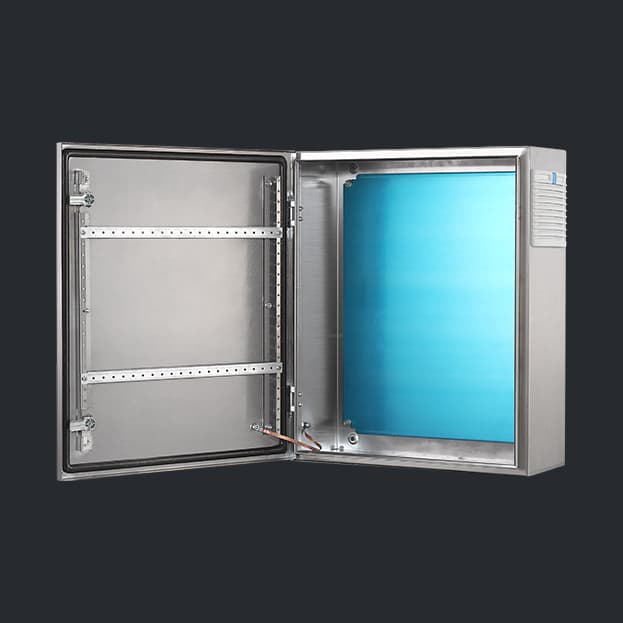

VAE Stainless Steel Compact Enclosure
| Material | SUS304/SUS316 |
| Surface reatment | Brushed Stainless Steel Finish |
| Protection grade | IP65 (acc.to IEC 60529) |
| Impact Resistance | IK10(typical) |
| Mounting plate | Galvanized sheet,Removable |
| Temperature Range | 40℃ to 80℃ |
| Gasket | PU Foam Continuous Seal,Machine Foamed |
| Installation | Wall Mounting |
| Locking System | MS813（SUS304） with key |
| Earthing | Door and body with M6 earthing stud |
| Standard configuration | Door plate, Box body, Sealing strip, Grounding set, Mounting plate, Door lock |
| Optional Items | Ventilation fan, Thermostat, Rainhood, Louvered Openings, Inner door, Viewing Window, Wall Mounting Bracket |
| Standard & Approvals | IEC 60529/EN 62208/ISO 9001/CE/RoHS |
Optional Accessories
FAQs About VAE Wall-Mounted Compact Enclosure
1. What is the purpose of the rainhood on this enclosure?
The rainhood prevents water from entering the enclosure from the top by extending an overhang that directs rain away from the door seal. It enhances outdoor waterproof performance, especially under heavy rainfall or long-term exposure.
2. Does the rainhood improve the enclosure’s IP rating?
The rainhood does not change the official IP65 rating, but it significantly improves real-world protection against rain, dripping water, and wind-driven moisture. This results in better long-term reliability for outdoor installations.
3. Can the rainhood be customized in size or extended for extra shading?
Yes. The rainhood can be made deeper or wider according to the installation environment. Extended hoods are commonly used for areas with strong wind, heavy rainfall, or high UV exposure.
4. Is the rainhood suitable for coastal or high-humidity regions?
Absolutely. When paired with stainless steel SUS304 or SUS316, the rainhood version is ideal for coastal, marine, tropical, or high-humidity sites because it minimizes top-side water accumulation and reduces corrosion risk.
5. What outdoor applications typically require an enclosure with a rainhood?
Rainhood enclosures are widely used for outdoor pump control systems, solar inverter protection, street lighting distribution, telecom equipment, HVAC units, and industrial monitoring systems where direct rain exposure is unavoidable.
6. What is your minimum order quantity?
No strict MOQ. We accept prototype orders, small runs, and mass production for OEM customers.
Material Comparison
| Powder-Coated Steel | Stainless Steel SUS304 | Stainless Steel SUS316 | |
|---|---|---|---|
| Corrosion Resistance | ★★☆☆☆ (Medium) | ★★★★☆ (High) | ★★★★★ (Very High) |
| Cost Level | Low | Medium | Higher |
| Best Application | Indoor control panels, industrial equipment rooms |
Light outdoor use, telecom, HVAC, food industry | Coastal areas, marine, chemical plants, harsh environments |
| Key Advantages | Cost-effective, strong structure | Excellent corrosion resistance, clean appearance, universal grade | Superior resistance to chlorides, ideal for extreme conditions |
Applications:
Industrial Automation & Process Control
Power Distribution & Electrical Panels
Data Centers & Telecommunications
Renewable Energy Systems
Why Choose Our AE Enclosure Alternative?
We manufacture customizable, high-quality industrial enclosures designed as a direct replacement for the Rittal AE series. Whether you need standard-sized enclosures or customized options, we provide affordable and reliable solutions for your industrial and electrical applications.
