Vililong Product Display

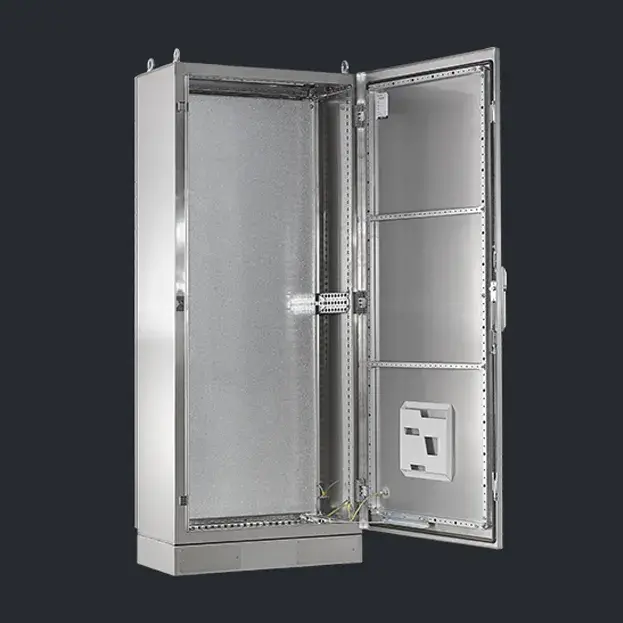

VES SUS316 Stainless Steel Freestanding Enclosure
VES series 5-fold structural frame freestanding enclosure is a side panel can not be disassembled, the sealing effect is better, the protection level is relatively high, the cost performance is also high, can only be used independently, can not be combined
Features
- Made of Sus316 stainless steel plate by bending and welding
- 5-fold structural frame
- Three-section flexibleinlet/outlet line device
- The door are reinforced with square tubes
- Modular holes with a spacing of 25mm on the frame ensures flexibility and universality of installation
- The surface is treated with epoxy resin electrostatic spraying
- Door panel PU sealing strip to prevent dust and rain from penetrating
- Equipped with removable mounting plate
- IP55 protection rating
Support
- Custom sizes
- Material/Material thickness
- Lock/Hinge/Stiffener
- Different powder coating colors and finishes
- Custom Logo/Text
- Pre-cut holes for For wiring, ventilation, and component integration
VES SUS316 Stainless Steel Freestanding Enclosure
*Some content and parameters are for reference only. Our company can adjust performance and customize processing according to customer needs.
Technical Data
| Material Options | Steel/Stainless Steel |
| Sizes | Custom sizes available |
| Ingress Protection (IP) Rating | IP65 |
| Temperature Range | -20～C to +60～C |
| NEMA Rating | NEMA 1, NEMA 3R, NEMA 4X (depending on model) |
| Mounting Type | Freestanding (floor-mounted) |
| Standard Configuration | Door Plate Box Body Sealingstrip Grounding Set Mounting Plate Door Lock |
Regular size
| Size (W*H*D) |
Materials | Surface Reatment | Thicknes(mm) Box body/Door Plate/Mounting Plate |
|---|---|---|---|
| 600*1200*400 | Sus316 | Wire Drawing | 1.2/1.5/2.0 |
| 700*1500*400 | Sus316 | Wire Drawing | 1.2/1.5/2.0 |
| 700*1700*400 | Sus316 | Wire Drawing | 1.5/2.0/2.0 |
| 800*1800*400 | Sus316 | Wire Drawing | 1.5/2.0/2.0 |
| 800*1800*600 | Sus316 | Wire Drawing | 1.5/2.0/2.0 |
| 800*2000*600 | Sus316 | Wire Drawing | 1.5/2.0/2.0 |
Professional Electrical Enclosure Manufacturer
Wenzhou Vililong Technology Co., Ltd.
We are a professional manufacturer specializing in high-quality Electrical enclosures, offering a wide range of solutions for electrical and industrial applications. Our products, including Electrical Distribution Boxes&Cabinets, as well as customized enclosures and Rittal Alternatives, are engineered using advanced sheet metal processing technologies (such as laser cutting,CNC bending, welding robots, etcto) ensure precision, durability, and superior performance.
0Years experience
Electrical Enclosure
Manufacturing
Manufacturing
0Employees
R&D, design, production
Technical team
Technical team
0Equipments
Automated production equipment
0sqm
Modern production and manufacturing base
Laser Cutting Machine
It can be used for cutting a variety of metal materials and has the advantages of fast processing speed, fine workmanship, strong adaptability and high flexibility..
CNC Bending Machine
Precise and accurate CNC bending equipment. Customized design to meet your multiple bending needs.
Bending Machine
Large tonnage bending machine to meet customer requirements for large box.
Welding Robot
Panasonic welding robots provide you with reliable peace of mind and assured products
Professional Drawing
Professional sheet metal engineers to meet customer customization needs.
Quantity Production
5000 square meters of plant and professional production equipment and personnel, to meet the mass production of customers.
Certification
CE
IP65
ISO9001
FAQ-SUS316 ES Freestanding Cabinet
What is an ES Freestanding Cabinet?
An ES Freestanding e is a self-supporting enclosure designed to protect electrical, automation, and control equipment in industrial environments. It provides a robust and modular solution for housing sensitive components while ensuring easy installation and maintenance.It was first introduced to the market by the Rittal, which has now discontinued the product.
Why Choose SUS316 Stainless Steel for ES Cabinets?
SUS316 stainless steel offers superior corrosion resistance compared to SUS304, making it ideal for:
- Harsh Environments – Excellent resistance to chemicals, moisture, and saltwater.
- Food & Beverage Industry – Meets hygiene standards due to its non-corrosive properties.
- Marine & Offshore Applications – High durability in salt-laden environments.
- Pharmaceutical & Cleanroom Settings – Ensures contamination-free operation.
Can the Cabinet Be Customized?
Yes! We offer a range of customization options, including:
- Custom Dimensions – Tailored to fit your specific needs.
- Ventilation & Cooling Systems – Fan kits, heat exchangers, and A/C units.
- Locking Mechanisms – Standard or advanced security locks.
- Cable Management Solutions – Pre-cut holes and cable entry points.
- Surface Finish Options – Polished or powder-coated finish for added protection.
How Does It Compare to Rittal ES Cabinets?
Cheaper price, accept a wider range of customization
How Can I Order?
We provide OEM & ODM services for bulk orders and custom projects. Contact us today for a quote and worldwide shipping options!
How does SUS304 compare to SUS316?
| Property | SUS304 | SUS316 |
|---|---|---|
| Corrosion Resistance | Good | Excellent (better for marine & chemical environments) |
| Molybdenum (Mo) Content | 0% | 2-3% |
| Strength & Durability | High | Slightly higher |
| Cost | Lower | ~20-30% higher |
| Best For | General industrial enclosures | Harsh environments (marine, chemicals, saltwater) |
High-Strength ES Freestanding Cabinet – The Perfect Alternative to Rittal
Our ES Cabinet is designed as a high-quality alternative to Rittal ES cabinets, offering superior strength, protection, and flexibility for industrial applications. Built with an advanced five-fold profile frame, our enclosures provide exceptional structural integrity, increased load capacity, and enhanced installation flexibility—making them ideal for housing electrical, automation, and power distribution systems.
Key Features of Our ES Freestanding Cabinet
✅ Material Options: Stainless Steel 304/316 or Powder-Coated Mild Steel
✅ IP55 Protection: Dustproof & Waterproof for harsh environments
✅ Durable Construction: Strong sheet metal housing for industrial use
✅ Customizable Designs: Custom sizes, cutouts, locks, and branding available
✅ Competitive Pricing: A cost-effective alternative to major brands
Rittal ES Cabinet vs. Our Alternative – Side-by-Side Comparison
| Material Options | Steel/Stainless Steel |
| Sizes | Custom sizes available |
| Ingress Protection (IP) Rating | IP65 |
| Temperature Range | -20～C to +60～C |
| NEMA Rating | NEMA 1, NEMA 3R, NEMA 4X (depending on model) |
| Mounting Type | Freestanding (floor-mounted) |
| Standard Configuration | Door Plate Box Body Sealingstrip Grounding Set Mounting Plate Door Lock |
Applications:
Industrial Automation & Process Control
Power Distribution & Electrical Panels
Data Centers & Telecommunications
Renewable Energy Systems
Customization Options Available
We understand that every project is unique. That’s why we offer customizable ES Freestanding Enclosures to meet your exact needs:
🔧 Custom dimensions & mounting options
🔧 Custom holes for cable entry & ventilation
🔧 Custom powder coating and branding (logo engraving available)
🔧 Special lock and security options
Why Choose Our ES Five-folds profies Cabinet Alternative?
Our high-strength, five-fold profile ES Cabinets provide a cost-effective, durable, and fully customizable alternative to Rittal enclosures. Contact us today for a custom quote and take advantage of our global shipping options!
