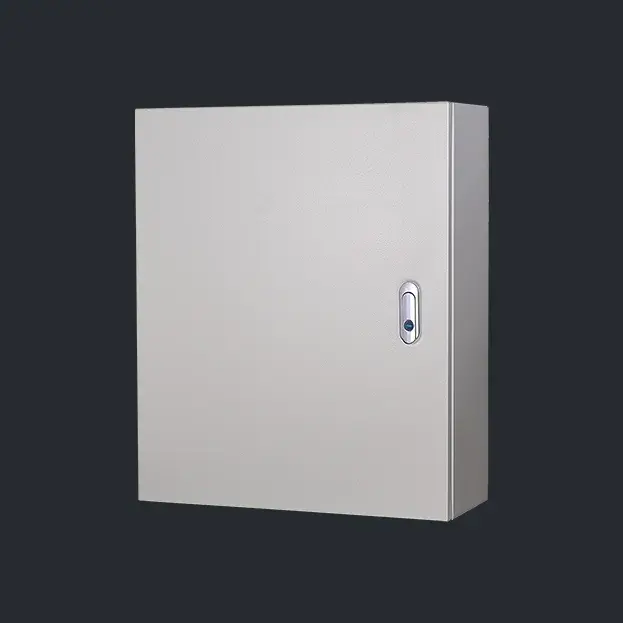

VJ Series Electrical Box

Control Panel Enclosure,Powder-Coated Mild Steel Electrical Junction Box,Waterproof & Dustproof Electrical Enclosure, Outdoor & Indoor Universal Project Box with Lock & Mounting Plate

Made of cold rolled steel plate by bending and welding
The surface is treated with epoxy resin electrostatic spraying
Door panel PU sealing strip to prevent dust and rain from penetrating
Inlet and outlet holes are provided with hole cover plate（Sealing strip）

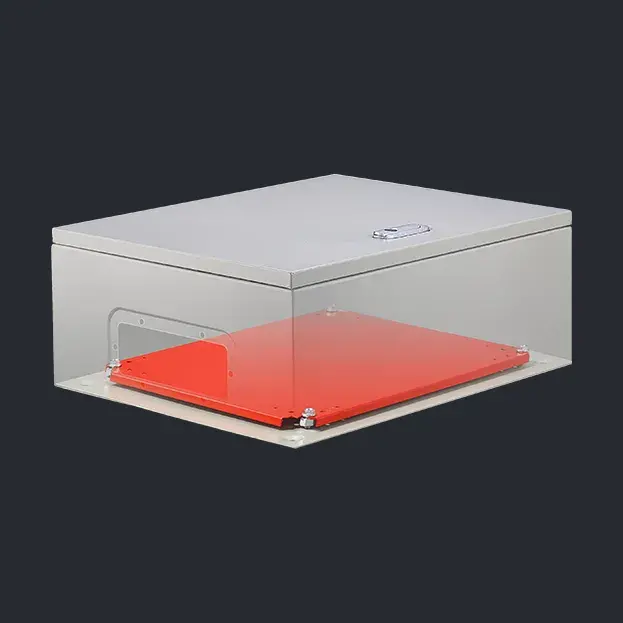

Equipped with removable mounting plate
IP65 protection rating

Custom Design Available

Custom sizes
Material/Material thickness
Lock/Hinge/Stiffener
Colar(RAL)
Custom Logo/Text
Pre-lasered cable entry holes & laser cut apertures

Vililong Electrical Enclosure Product Manuals.PDF

Specification Data

Size (WHD)	Materials	Color	Thicknes(mm) Box body/Door Plate/Mounting Plate
250300150	Cold-rolled Steel	RAL7035	0.7/0.7/0.7
300400150	Cold-rolled Steel	RAL7035	0.7/0.7/0.7
400500150	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
300400200	Cold-rolled Steel	RAL7035	0.7/0.7/0.7
400500200	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
400600200	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
500600200	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
500700200	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
600800200	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
6001000200	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
8001000200	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
400500250	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
500600250	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
500700250	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
600800250	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
6001000250	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
8001000250	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
400500300	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
500600300	Cold-rolled Steel	RAL7035	0.8/0.8/0.8
600800300	Cold-rolled Steel	RAL7035	1.0/1.0/1.0
8001000300	Cold-rolled Steel	RAL7035	1.0/1.0/1.0

FAQ-VJ Series Control Panel Enclosure

What is a Control Panel Enclosure?
A Control Panel Enclosure is a protective housing designed to safeguard electrical and electronic components from dust, water, and environmental hazards. It is commonly used in industrial automation, power distribution, and telecommunications applications.
What materials are used for Control Panel Enclosures?
Control Panel Enclosures are typically made from:
- Stainless Steel (304/316): Corrosion-resistant, suitable for harsh environments.
- Cold Rolled Steel: Cost-effective, durable, and often powder-coated for extra protection.
- Aluminum: Lightweight and resistant to corrosion.
- Polycarbonate or ABS Plastic: Non-metallic, used in environments where electrical insulation is required.
What is the difference between IP65, IP66, and IP67 ratings?
- IP65: Dust-tight and protected against water jets.
- IP66: Dust-tight and protected against powerful water jets.
- IP67: Dust-tight and can be submerged in water up to 1 meter for 30 minutes.
How do I choose the right size for my Control Panel Enclosure?
To select the right size:
- Determine the dimensions of your electrical components and allow extra space for wiring.
- Consider heat dissipation and airflow requirements to prevent overheating.
- Ensure enough room for future expansions or modifications.
Can I customize the Control Panel Enclosure?
Yes, we offer customizable solutions including:
- Custom sizes and dimensions
- Pre-drilled holes and cutouts for cable entry
- Special coatings and finishes (e.g., powder coating, anodizing)
- Branding options like logo engraving

Optional Accessories

Inner door

Viewing Window

Air Filter Ventilation

Control Panel Enclosure –
Reliable Protection for Industrial & Electrical Systems

A control panel enclosure is designed to house and protect electrical components, control systems, and wiring in industrial, commercial, and outdoor environments. Our stainless steel control panel enclosures provide IP66-rated protection, ensuring dustproof, waterproof, and corrosion-resistant performance for various applications.

Key Features:

✅ High-Quality Materials (Sus304/316L,Steel) – Corrosion-resistant and suitable for harsh environments.

✅ Industry Compliance – Meets CE, UL, and RoHS standards for safety and reliability.

✅ Pre-Drilled Mounting Plates – Easy installation for electrical components and control systems.

✅ Custom Sizes & Configurations – Available in multiple dimensions with customizable options.

✅ IP66/IP55 Protection – Protects against dust, water, and extreme conditions.

Applications:

Industrial Automation & Process Control

Power distribution and electrical installations

Power Distribution & Electrical Panels

Data Centers & Telecommunications

Renewable Energy Systems

Why Choose Our Control Panel Enclosure?

Our industrial control panel enclosures are engineered to provide long-lasting protection for sensitive electrical and automation systems. Whether you need a wall-mounted, floor-standing, or weatherproof enclosure, we offer custom solutions tailored to your project’s requirements.

Flexible Sheet Metal Fabrication Solutions Available

Size

Width,Height,Depth.Enclosure size, like that of an electrical distribution box or panel, varies significantly depending on its intended use, location, and the number of components it needs to house.

Colors

Enclosure colors serve multiple purposes, such as improving safety, enhancing visibility, aiding identification, and blending in with the surrounding environment. The choice of color can vary depending on the enclosure’s intended use, industry standards, or aesthetic preferences.

Material types and Thickness

Enclosure material types and thickness are critical factors that influence the durability, safety, protection level, and overall performance of enclosures. The material and thickness are chosen based on the environment, application requirements, and specific industry standards.

Door and hinge Types

Choosing the right door and hinge types for electrical enclosures is crucial for ensuring accessibility, security, and durability.

Door Locks

Electrical enclosure door locks play a crucial role in ensuring the security and safety of the equipment housed within. The type of lock chosen depends on the level of security required, ease of access, and environmental conditions.

Windows

Electrical enclosure windows provide visibility into the interior components while ensuring protection and maintaining safety standards. They are particularly useful for monitoring equipment status or viewing control panels without opening the enclosure.

Mounting Plate

Mounting plates in electrical enclosures are used to secure and organize internal components, such as circuit breakers, relays, and other equipment. They provide a stable base for mounting equipment and can help in maintaining the neatness and functionality of the enclosure.

UV Printing

UV printing is a modern technology used for printing on various surfaces, including electrical enclosures. It involves using ultraviolet (UV) light to cure or dry ink as it is printed. This process offers several benefits, making it suitable for customizing and labeling electrical enclosures.

Enclosure Rating

Enclosure ratings, such as NEMA and IP (Ingress Protection), specify the degree of protection provided by electrical enclosures against environmental factors.

Accessories

Mounting Brackets,Cooling Fans and Vents,Lighting,Air filter ventilation,Folder,Stopper…
