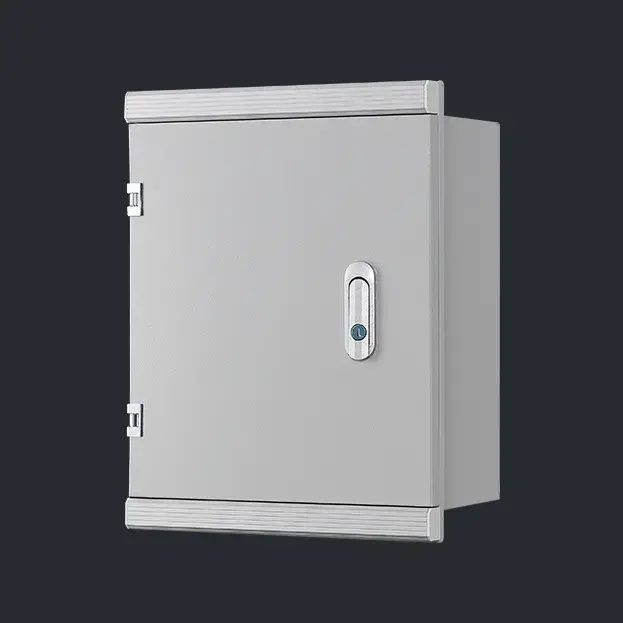

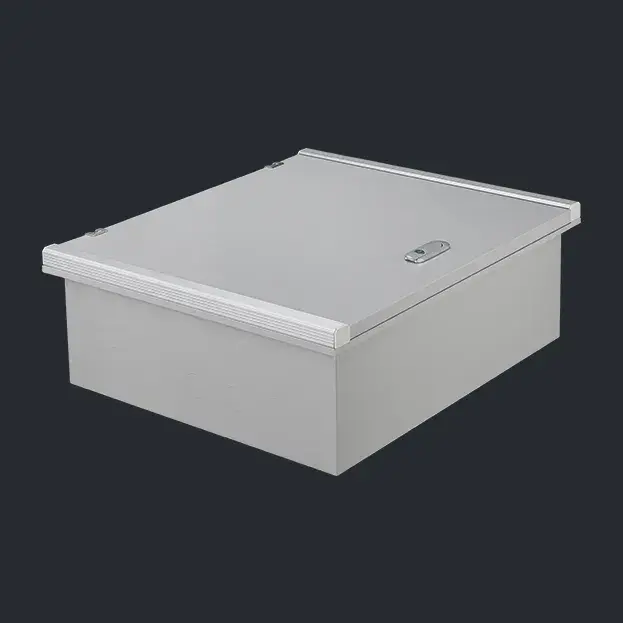

Concealed Control Panel Enclosure

Concealed Electrical Enclosure,C0ld Rolled Steel Control Panel Enclosure,Wall mounting

When installing, the box is inlaid into the wall, and the panel is left alone outside the wall
Made of cold rolled steel plate by bending and welding
The surface is treated with epoxy resin electrostatic spraying
Door panel PU sealing strip to prevent dust and rain from penetrating
Inlet and outlet holes are provided with hole cover plate（Sealing strip）
Equipped with removable mounting plate
IP65 protection rating

Custom Design Available

Custom sizes
Material/Material thickness
Lock/Hinge/Stiffener
Colar(RAL)
Custom Logo/Text
Pre-lasered cable entry holes & laser cut apertures

Vililong Electrical Enclosure Product Manuals.PDF

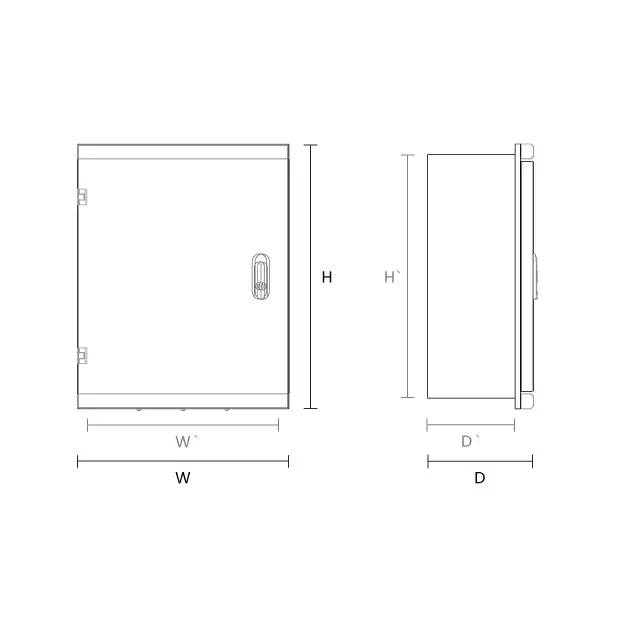

Specification Data

Size (WHD)	Size (W’*H’)	Materials	Color
300400160	260*360	Cold-rolled Steel	RAL7035
400500160	360*460	Cold-rolled Steel	RAL7035
500600180	450*560	Cold-rolled Steel	RAL7035
600800180	560*760	Cold-rolled Steel	RAL7035

FAQ-Concealed Control Panel Enclosure

What is a concealed control panel enclosure?
A concealed control panel enclosure is a protective housing for electrical and electronic components that features a hidden or flush-mounted design. It is used to improve aesthetics, save space, and enhance security by preventing unauthorized access.
What are the benefits of a concealed control panel enclosure?
- Sleek appearance: The enclosure blends seamlessly into walls or machinery.
- Space-saving design: Ideal for areas with limited space.
- Enhanced security: Concealed enclosures reduce the risk of tampering or vandalism.
- Environmental protection: Available in IP65 ratings for dust and water resistance.
What industries use concealed control panel enclosures?
- Industrial automation and machinery
- Building and infrastructure systems
- Smart home and security installations
- Data centers and telecom networks
- Medical and laboratory equipment
Can I customize the concealed control panel enclosure?
Yes! We offer custom sizes, cutouts, lock mechanisms, finishes, and mounting options to fit your specific needs. Contact us for a quote.
Do you offer bulk orders and international shipping?
Yes! We provide bulk discounts and ship worldwide. Contact us for shipping details and lead times.

Optional Accessories

Inner door

Viewing Window

Air Filter Ventilation

Control Panel Enclosure –
Reliable Protection for Industrial & Electrical Systems

A control panel enclosure is designed to house and protect electrical components, control systems, and wiring in industrial, commercial, and outdoor environments. Our stainless steel control panel enclosures provide IP66-rated protection, ensuring dustproof, waterproof, and corrosion-resistant performance for various applications.

Key Features:

✅ High-Quality Materials (Sus304/316L,Steel) – Corrosion-resistant and suitable for harsh environments.

✅ Industry Compliance – Meets CE, UL, and RoHS standards for safety and reliability.

✅ Pre-Drilled Mounting Plates – Easy installation for electrical components and control systems.

✅ Custom Sizes & Configurations – Available in multiple dimensions with customizable options.

✅ IP66/IP55 Protection – Protects against dust, water, and extreme conditions.

Applications:

Industrial Automation & Process Control

Power distribution and electrical installations

Power Distribution & Electrical Panels

Data Centers & Telecommunications

Renewable Energy Systems

Why Choose Our Control Panel Enclosure?

Our industrial control panel enclosures are engineered to provide long-lasting protection for sensitive electrical and automation systems. Whether you need a wall-mounted, floor-standing, or weatherproof enclosure, we offer custom solutions tailored to your project’s requirements.

Flexible Sheet Metal Fabrication Solutions Available

Size

Width,Height,Depth.Enclosure size, like that of an electrical distribution box or panel, varies significantly depending on its intended use, location, and the number of components it needs to house.

Colors

Enclosure colors serve multiple purposes, such as improving safety, enhancing visibility, aiding identification, and blending in with the surrounding environment. The choice of color can vary depending on the enclosure’s intended use, industry standards, or aesthetic preferences.

Material types and Thickness

Enclosure material types and thickness are critical factors that influence the durability, safety, protection level, and overall performance of enclosures. The material and thickness are chosen based on the environment, application requirements, and specific industry standards.

Door and hinge Types

Choosing the right door and hinge types for electrical enclosures is crucial for ensuring accessibility, security, and durability.

Door Locks

Electrical enclosure door locks play a crucial role in ensuring the security and safety of the equipment housed within. The type of lock chosen depends on the level of security required, ease of access, and environmental conditions.

Windows

Electrical enclosure windows provide visibility into the interior components while ensuring protection and maintaining safety standards. They are particularly useful for monitoring equipment status or viewing control panels without opening the enclosure.

Mounting Plate

Mounting plates in electrical enclosures are used to secure and organize internal components, such as circuit breakers, relays, and other equipment. They provide a stable base for mounting equipment and can help in maintaining the neatness and functionality of the enclosure.

UV Printing

UV printing is a modern technology used for printing on various surfaces, including electrical enclosures. It involves using ultraviolet (UV) light to cure or dry ink as it is printed. This process offers several benefits, making it suitable for customizing and labeling electrical enclosures.

Enclosure Rating

Enclosure ratings, such as NEMA and IP (Ingress Protection), specify the degree of protection provided by electrical enclosures against environmental factors.

Accessories

Mounting Brackets,Cooling Fans and Vents,Lighting,Air filter ventilation,Folder,Stopper…
